A-pillar Lower Protector Assembly
Removal
HINT:
 Use the same procedures for the right side and left side.
 Procedures listed below are for the left side.
1. Remove the front left doorsill pressure plate assembly (See page 49-11).
2. Remove the front left door opening weatherstrip (See page 49-14).
3. Remove the left A-pillar lower protector assembly.

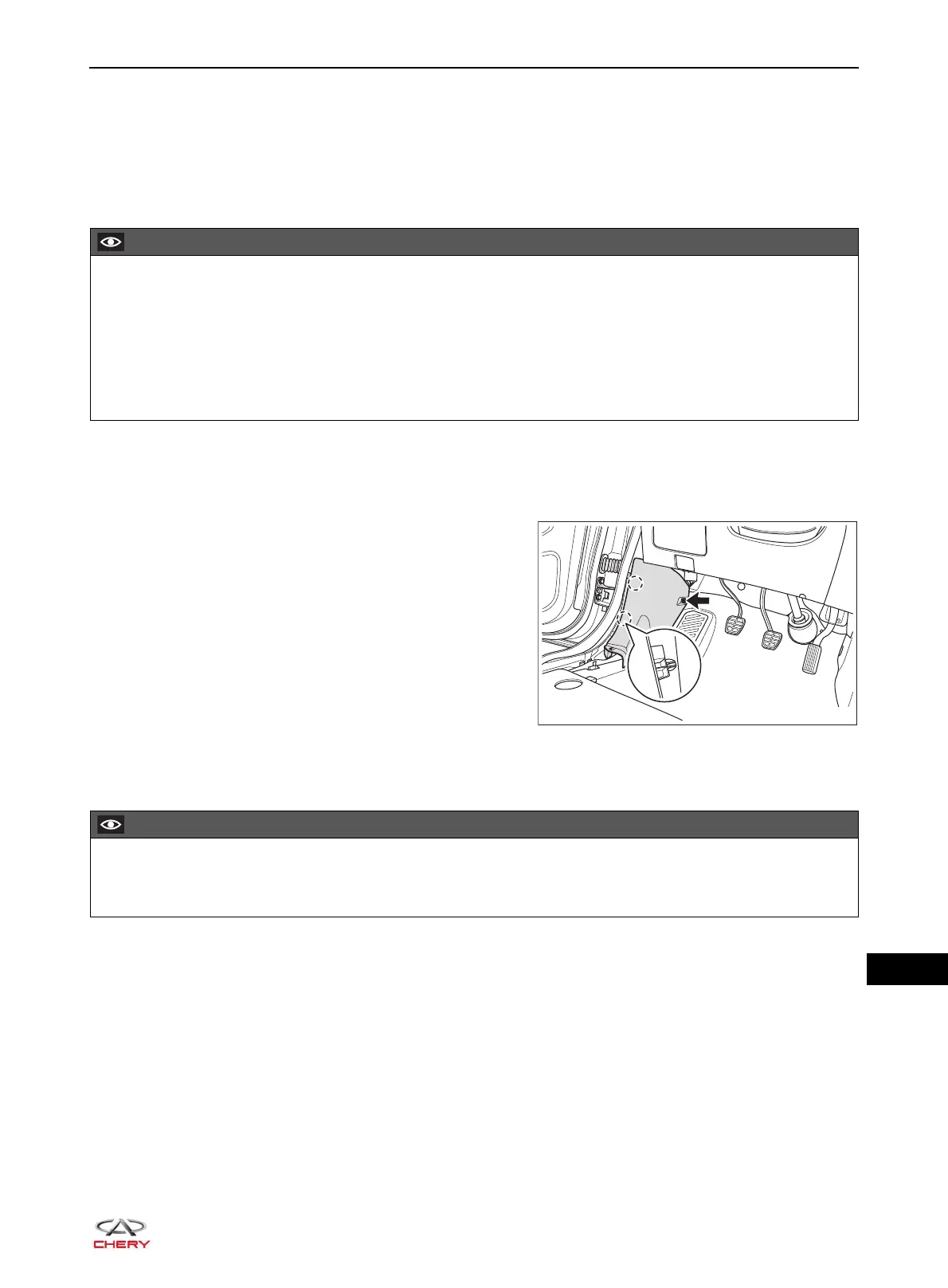

a. Remove the fixing nut (arrow) from the A-pillar lower
protector assembly.

(Tightening torque: 5 ± 1 N·m)
b. Using an interior crow plate, pry up the claws of 
A-pillar lower protector assembly, and remove the 
A-pillar lower protector assembly.
Installation
Installation is in the reverse order of removal.
CAUTION
 Make sure to wear safety equipment to prevent accidents when removing the A-pillar lower protector
assembly.
 Appropriate force should be applied when removing the A-pillar lower protector assembly. Be careful not
to operate roughly.
 Prevent interior and body paint from being scratched when removing the A-pillar lower protector
assembly.
RT21490110
CAUTION
 A-pillar lower protector assembly and front door opening weatherstrip should be fitted closely after
installing A-pillar lower protector assembly.
