Front Wheel Toe-in
Incorrect front wheel toe-in will cause wheel pull and abnormal tire wear. Check and adjust front wheel toe-in
as necessary.
Adjust the length of steering tie rod to the specified valve if front wheel toe-in is not within the tolerance due to
other reasons.
Specified Value for Front Wheel Toe-in
Inspection
1. Perform inspection with four-wheel alignment device (perform inspection procedures referring to operating
instructions for four-wheel alignment device).
2. Manual check:
a. Park vehicle on level ground, check if front tire pressure is within the specified range and adjust it to
specified value as necessary.

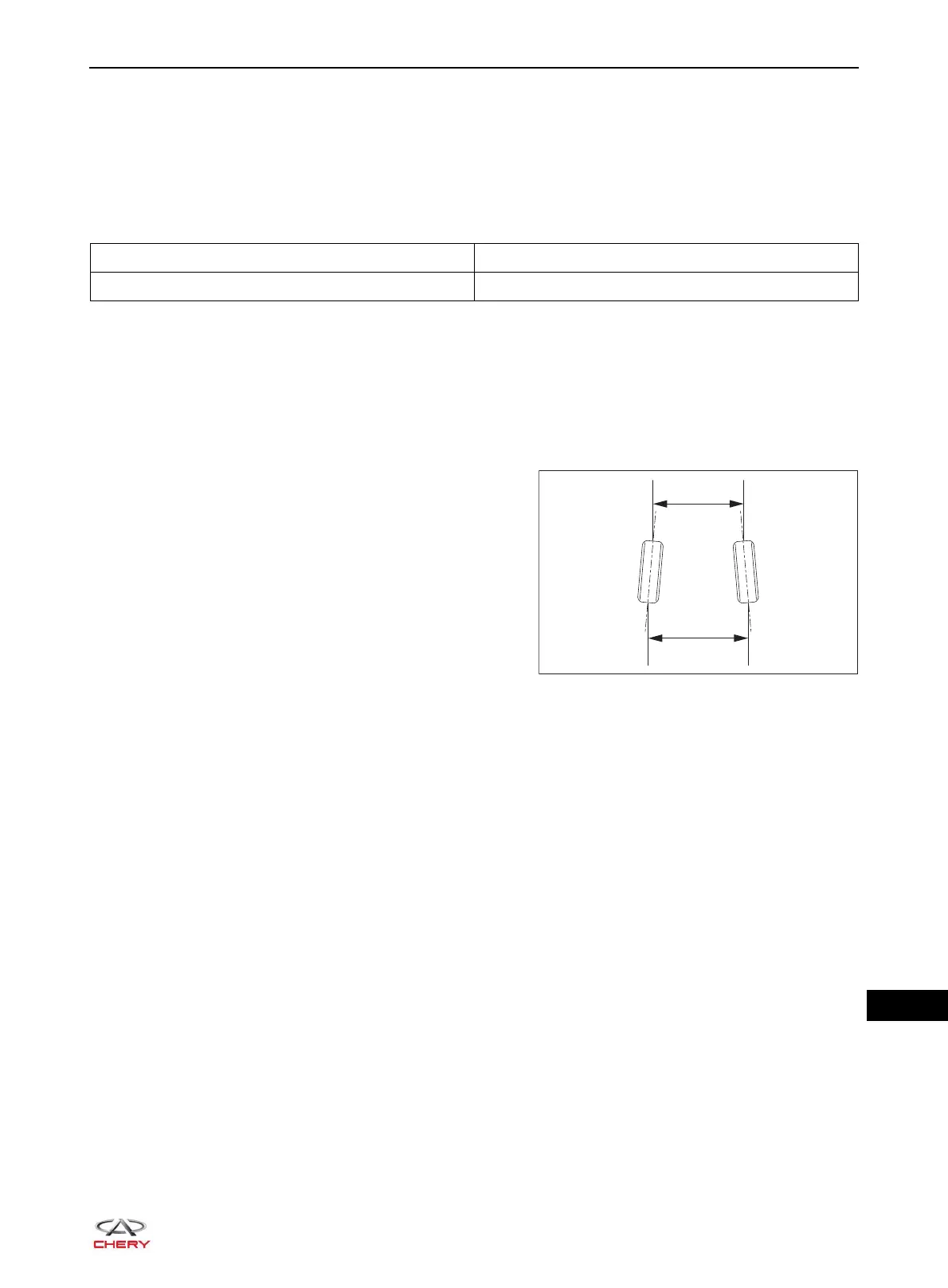

b. Place marks on the center position in front of front
wheels, and measure distance A between marks with
a tape measure.
c. Push vehicle to rotate wheels 180°, and measure
distance B between marks with tape measure when
the marks are turned to the rear of wheels.
d. Calculation method: front wheel toe-in = A - B ≤ 1 mm
Item Specified Value
Front Wheel Toe-in 5′ ± 5′
RT21230520
A
B
