50 - BODY DIMENSIONS
50–19
50

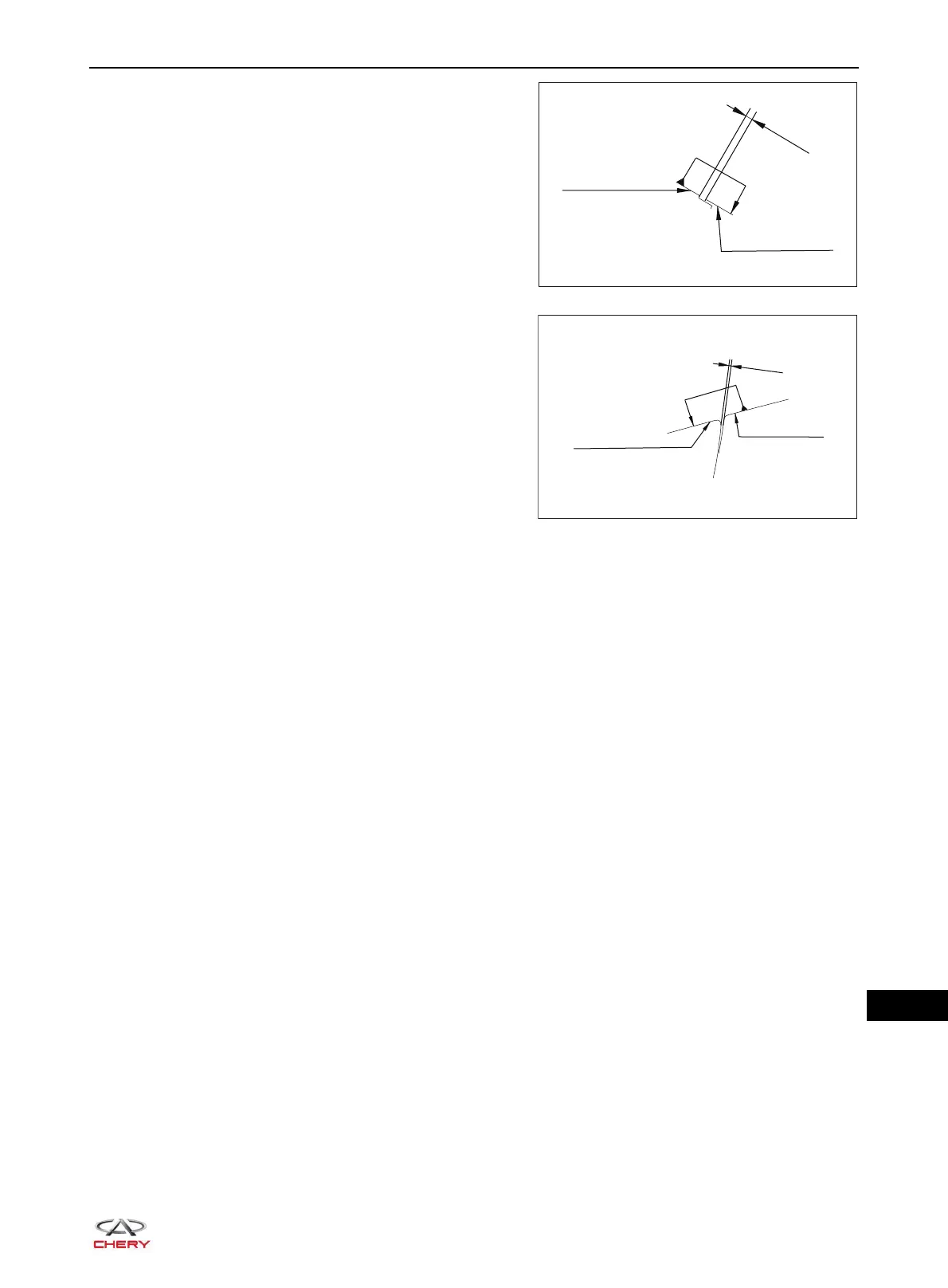

Clearance between front apron plate and rear apron plate at
A-30: 8.0 ± 3.0 mm
Flush between front apron plate and rear apron plate at
A-30: 0 mm
Clearance between front towing hook cover plate and front
bumper at A-31: 0.8 ± 0.5 mm
Flush between front towing hook cover plate and front
bumper at A-31: -0.5 ± 0.5 mm
8.0±3.0
FRONT APRON PLATE
REAR APRON PLATE
0
0
+1.0
RT21500270
FRONT TOWING
HOOK COVER PLATE
FRONT BUMPER
0.8
±0.5
-0.5
±0.5
RT21500350
