Cisco ASR 1000 Configuration Guide

1-2
Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide
OL-14127-08
Chapter 1 Using Cisco IOS XE Software
Accessing the CLI Using a Router Console

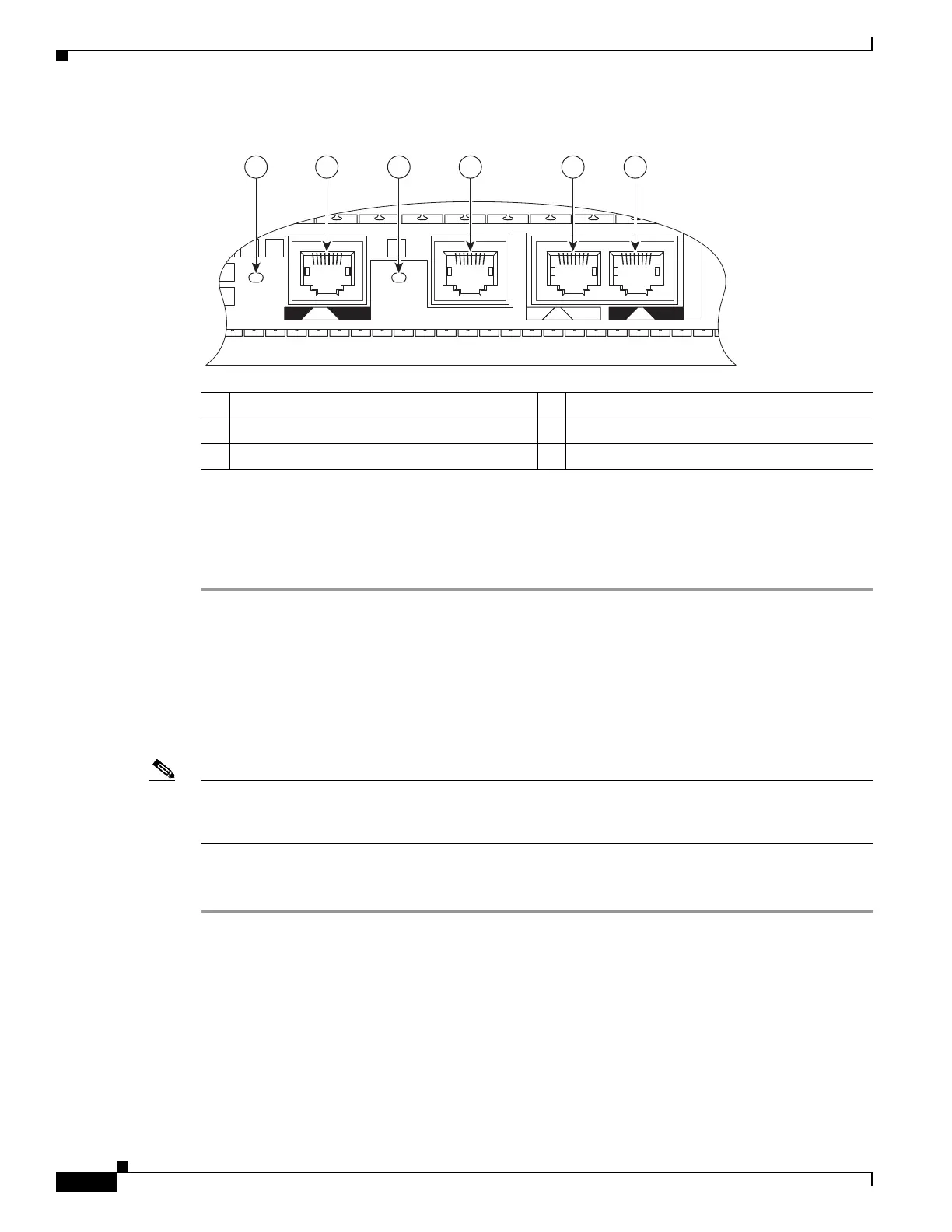

Figure 1-1 Cisco ASR 1000 Series Routers Console Port Connector
Connecting to the Console Port
Before you can use the console interface on the router using a terminal or PC, you must perform the
following steps:
Step 1 Configure your terminal emulation software with the following settings:
• 9600 bits per second (b/s)
• 8 data bits
• No parity
• 1 stop bit
• No flow control
Note These are the default serial communication parameters on the router. For information about how to
change the default settings to meet the requirements of your terminal or host, refer to the
Cisco IOS
Terminal Services Configuration Guide.
Step 2 Connect to the port using the RJ-45-to-RJ-45 cable and RJ-45-to-DB-25 DTE adapter or using the
RJ-45-to-DB-9 DTE adapter (labeled “Terminal”).
1 CARRIER LED 4 MGMT Ethernet connector
2 BITS connector 5 CON connector
3 LINK LED 6 AUX connector
CARRIER
LINK
MGMT ETHERNET BITS CON AUX
280079
1 2 3 4 5 6
