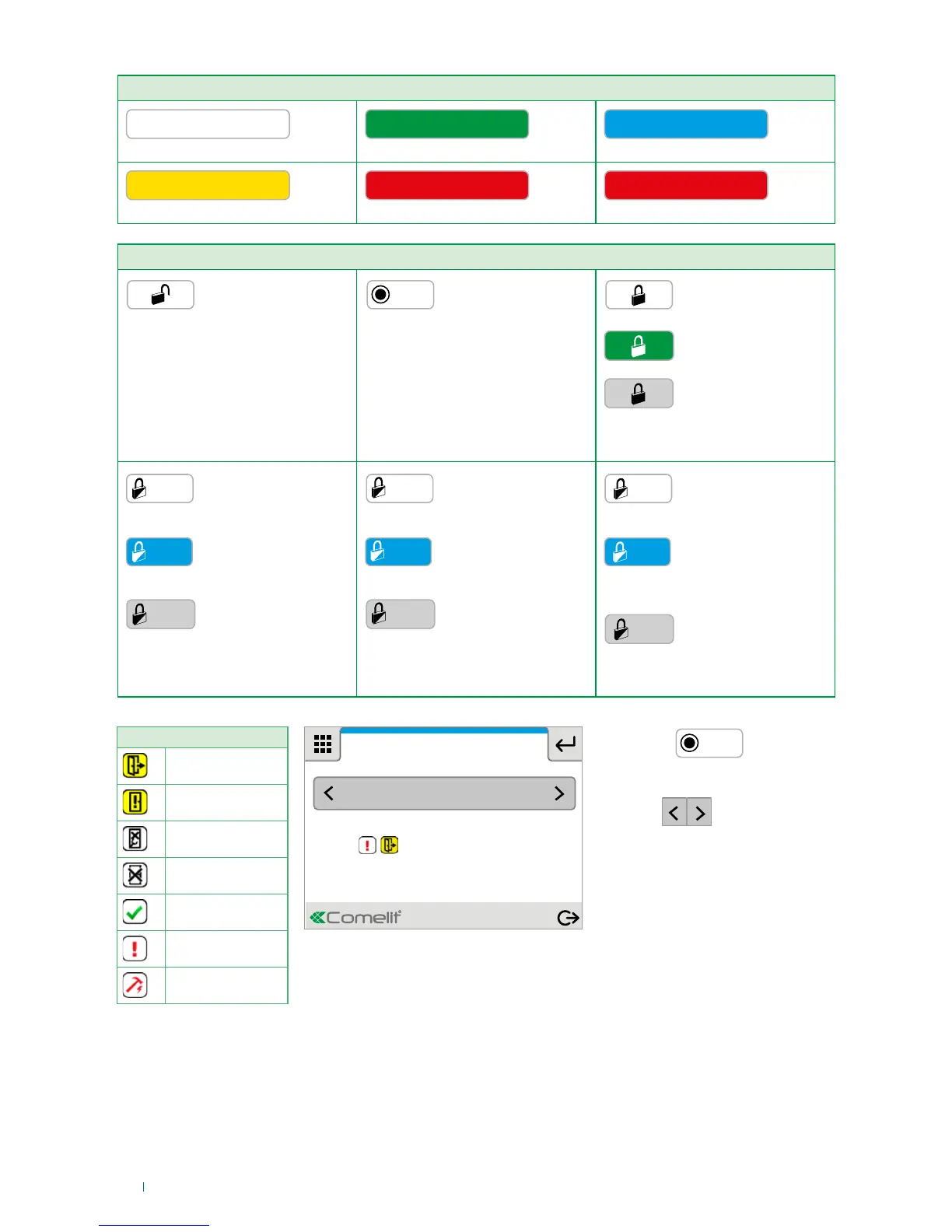

Intrusion Zones
Connected
Area 1
Entrance door
80
(2) Alarm zone status bar
Area 1
Deactivated
Zone alarm deactivated
Area 1
Total Act.
Zone alarm activated
Area 1
Act. P1
Partial zone alarm activated
Area 1
In sabotage
Area in tamper condition
Area 1
Alarm memory
Zone alarm in memory alert
Area 1
Alarm in progress
Alarm in progress
(2A) Alarm control buttons governing an area
Alarm
Connected
Area 1
Deactivated
Area 2
System Deactivated
P1 P2 P1+P2
Status
Zones
Deactivated
P1 P2 P1+P2
Zone
status
1A
1
2A
2
Deactivates alarms activated in a
specific area
Alarm
Connected
Area 1
Deactivated
Area 2
System Deactivated
P1 P2 P1+P2
Status
Zones
Deactivated
P1 P2 P1+P2
Zone
status
1A
1
2A
2
Displays the status of all the zones
in the area (open, excluded, isolated,
in tamper/fault condition, in alarm
condition).
Alarm
Connected
Area 1
Deactivated
Area 2
System Deactivated
P1 P2 P1+P2
Status
Zones
Deactivated
P1 P2 P1+P2
Zone
status
1A
1
2A
2
Activates the alarms in a specific area
Indicates that the alarms are active
P1 P2 P1+P2
Zone
Intrusione
Indicates that the system is not ready
for activation, and that forcing is
required
Alarm
Connected
Area 1
Deactivated
Area 2
System Deactivated
P1 P2 P1+P2
Status
Zones
Deactivated
P1
P2 P1+P2
Zone
status
1A
1
2A
2
Activates partial 1 across a specific
area (and deactivates partial 2 if active)
P1
Indicates that the partial scenario is
active
P1
P2 P1+P2
Zone
Intrusione
Indicates that the system is not ready
for activation, and that forcing is
required
Alarm
Connected
Area 1
Deactivated
Area 2
System Deactivated
P1 P2 P1+P2
Status
Zones
Deactivated
P1
P2
P1+P2
Zone
status
1A
1
2A
2
Activates partial 2 across a specific
area (and deactivates partial 1 if active)
P2
Indicates that the partial scenario is
active
P1
P2
P1+P2
Zone
Intrusione
Indicates that the system is not ready
for activation, and that forcing is
required
Alarm
Connected
Area 1
Deactivated
Area 2
System Deactivated
P1 P2 P1+P2
Status
Zones
Deactivated
P1 P2
P1+P2
Zone
status
1A
1
2A
2
Activates partial scenarios 1 and 2
across a specific area
P1+P2
Indicates that the partial scenarios are
active
P1 P2
P1+P2
Zone
Intrusione
Indicates that the system is not ready
for activation, and that forcing is
required
 Press
Alarm
Connected
Area 1
Deactivated
Area 2
System Deactivated
P1 P2 P1+P2
Status
Zones
Deactivated
P1 P2 P1+P2
Zone
status
1A
1
2A
2
to view the
status of the zones in an area.
 Press an option on the list
(e.g. "DOOR") to "exclude" or
"isolate" the zone.
 Use
Alarm
Connected
Open
• Entrance door
Alarm
Connected
Open
• Entrance door
to scroll through
the system partitions.
zone status legend
Zone open
Zone faulty
Zone isolated
Zone excluded
Zone in standby
Zone anomaly
Zone in tamper
condition
