Compaq Armada 7800 - Inserting a Memory Expansion Board

11-6 Upgrading RAM Memory
Writer: Carey Gregg Saved by: Rebecca Wiggins Saved date: 02/04/98 4:43 PM
Part Number: 314932-001 File name: Ch11.doc
Inserting a Memory Expansion Board
A memory expansion board is asymmetrically keyed (notched) to
ensure correct positioning.
1

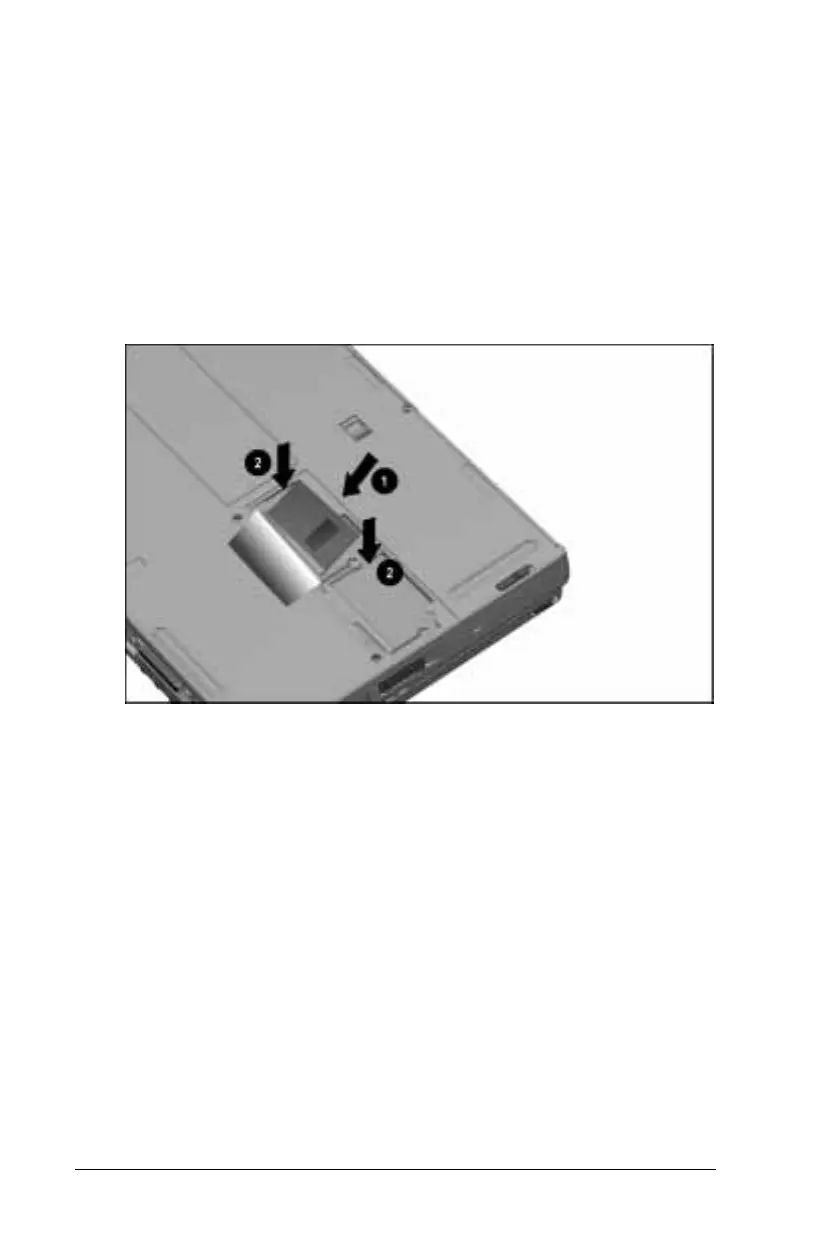

Insert the memory expansion board into an empty memory
expansion slot at a 45-degree angle
1
. Then slide it gently into
place until it is seated while tilted.
2
Push the memory expansion board down until the plastic
retention clips
2
snap back into place.
