Taking a Look at the Computer 2-9
Writer: Carey Gregg Saved by: Rebecca Wiggins Saved date: 02/04/98 6:57 PM
Part Number: 314932-001 File name: Ch02.doc

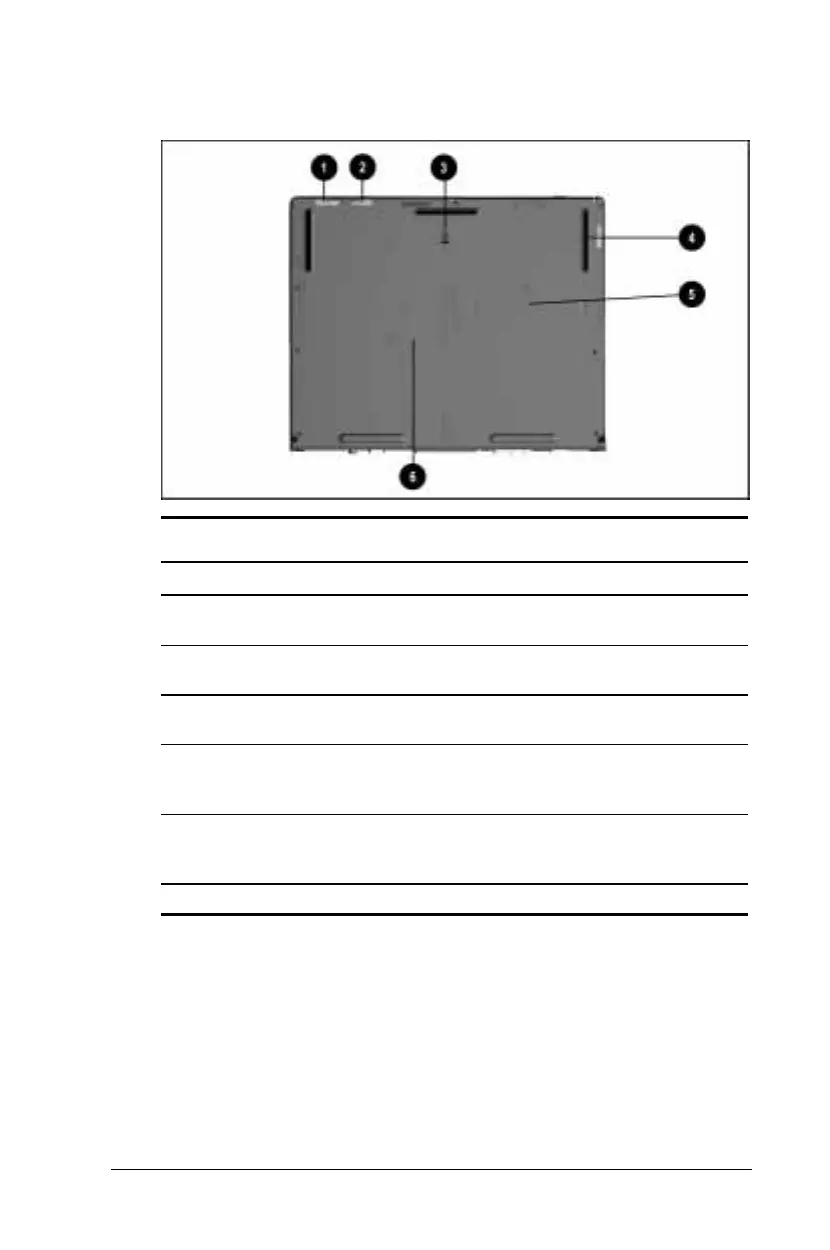

Bottom Components
Bottom Components
Component Function
1
Battery release latch Releases the battery pack from
the battery bay.
2
Hard drive release latch Releases the hard drive from the
hard drive bay.
3
Docking restraint latch recess Helps to secure the computer to
the desktop expansion base.
4
MultiBay release latch Releases a removable hard drive,
CD-ROM drive, diskette drive, or
battery pack in the MultiBay.
5
Memory expansion slot cover This cover must be removed in
order to install an optional
memory expansion board.
6
Serial number Bar-coded label.
