DMD1050TS Satellite Modem Board
Revision 1
Web Browser 7–44 MN-DMD1050TS
7.7.3.2 Interface | RX Setup Page

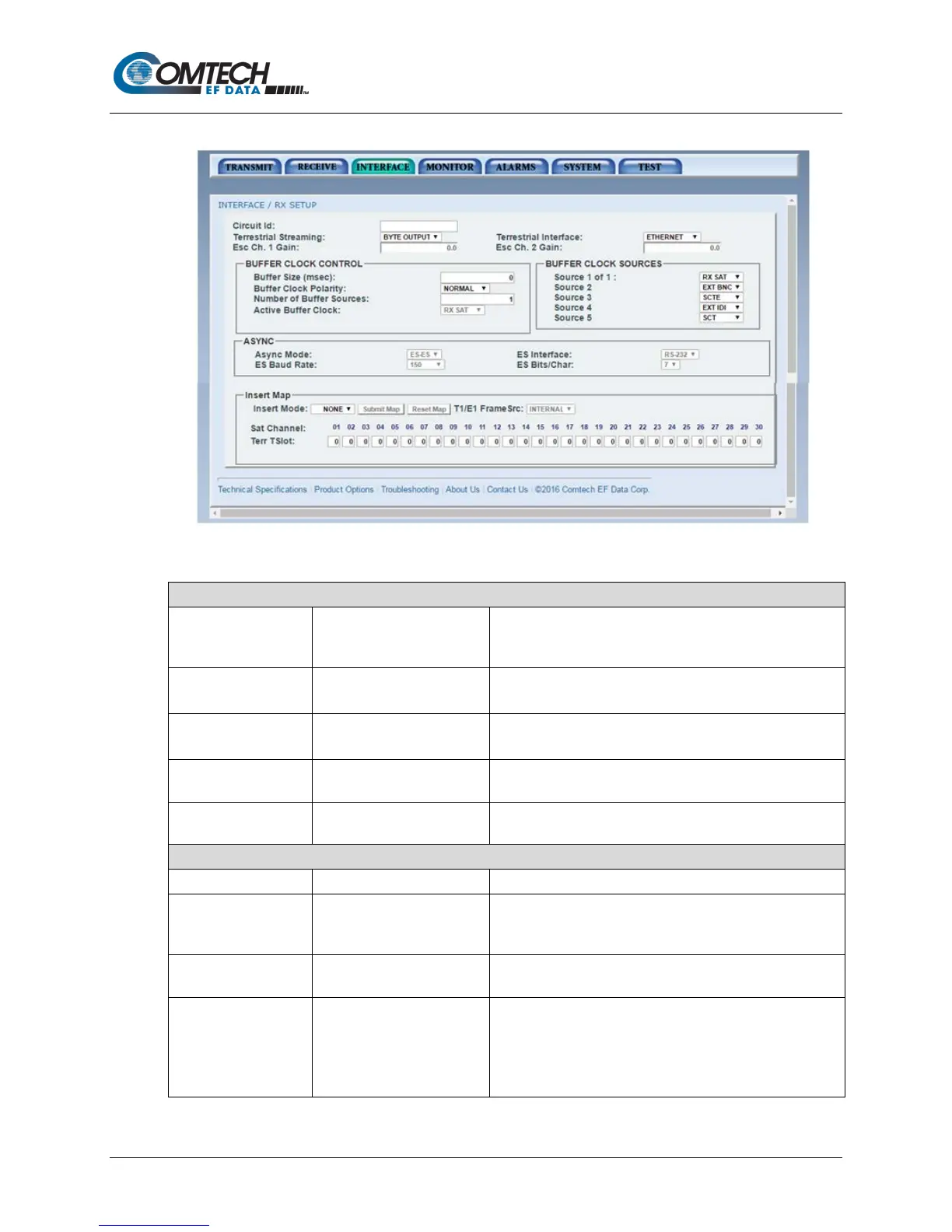

Figure 7-25. Interface | RX Setup Page Example
Interface | RX Setup Page
Circuit ID
Use to enter a Rx Circuit Identifier. Circuits can have an
identifier of up to 11 alphanumeric characters, such as
DLINK1.
Terrestrial
Streaming
•
BYTE OUTPUT
• PACKET OUTPUT
ASI only. BYTE OUTPUT: Continuous PACKET OUTPUT:
Burst.
Terrestrial Interface • ETHERNET
• MIL 188 114A
Use to select the Receive type.
Esc Ch. 1 Gain
•
-20 to +10 dB
Use to select ESC Voice Channel Gain. Only displayed
when IDR NETWORK and VOICE Channel are selected.
Esc Ch. 2 Gain • -20 to +10 dB
Use to select ESC Voice Channel Gain. Only displayed
when IDR NETWORK and VOICE Channel are selected.
BUFFER CLOCK CONTROL Section
Buffer Size (msec)
•
0 – 64 msecs
Use to set the Doppler Buffer Size in msec.
Buffer Clock Polarity
•
NORMAL
• INVERTED
Use to select the Buffer Clock Polarity for the Tx Terrestrial
Clock, relative to the Tx Data. If the G.703 Interface is
active, the Buffer Clock Polarity cannot be changed.
Number of Buffer
Sources
•
1 – 5
Use to select up to 5 clock sources.
Active Buffer Clock
•
RXSAT
• EXTBNC
• SCTE
• SCT
•
EXT IDI
Read only; shows the active buffer clock source.
