Web Browser 7–49 MN-DMD1050TS
7.7.4.2 Monitor | ETH Link Status Page

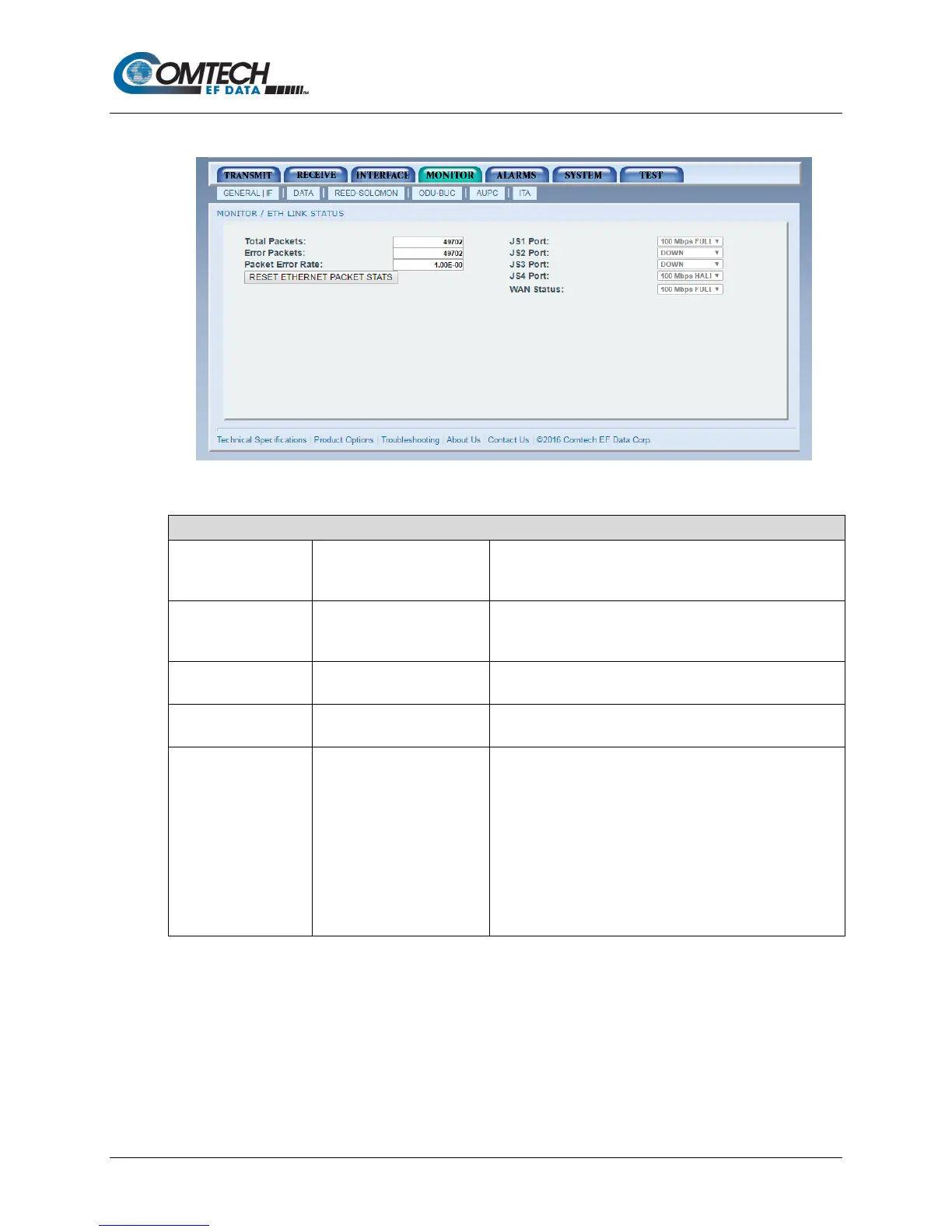

Figure 7-28. Monitor | ETH Link Status Page Example
Monitor | ETH Link Status Page
Total Packets
Read only; this shows the total number of Ethernet packets
received from the satellite. It is visible only when the
interface type is Ethernet.
Error Packets
Read only; this shows the number of erred Ethernet
packets received from the satellite. It is visible only when
the interface type is Ethernet.
Packet Error Rate
Read only; this shows the satellite Packet Error Rate. It is
visible only when the interface type is Ethernet.
Reset Ethernet
Packet Stats
Use to reset the Ethernet packet statistics. It is visible only
when the interface type is Ethernet.
JS1 Port
•
Down
• Unresolved
• 10 Mbps Half
• 10 Mbps Full
• 100 Mbps Half
• 100 Mbps Full
• Unused
Read only; this shows the status of the M&C Port.
• Down - the link is down.
• Unresolved – cannot agree on connection speed.
• 10 Mbps Half – connected at 10 Base-T Half Duplex.
• 10 Mbps Full – connected at 10 Base-T Full Duplex.
• 100 Mbps Half – connected at 100 Base-T Half
Duplex.
• 100 Mbps Full – connected at 100 Base-T Full Duplex.
• Unused – the port is not available.
