DMD1050TS Satellite Modem Board
Revision 1
Web Browser 7–60 MN-DMD1050TS
7.7.4.8 Alarms | Common Page

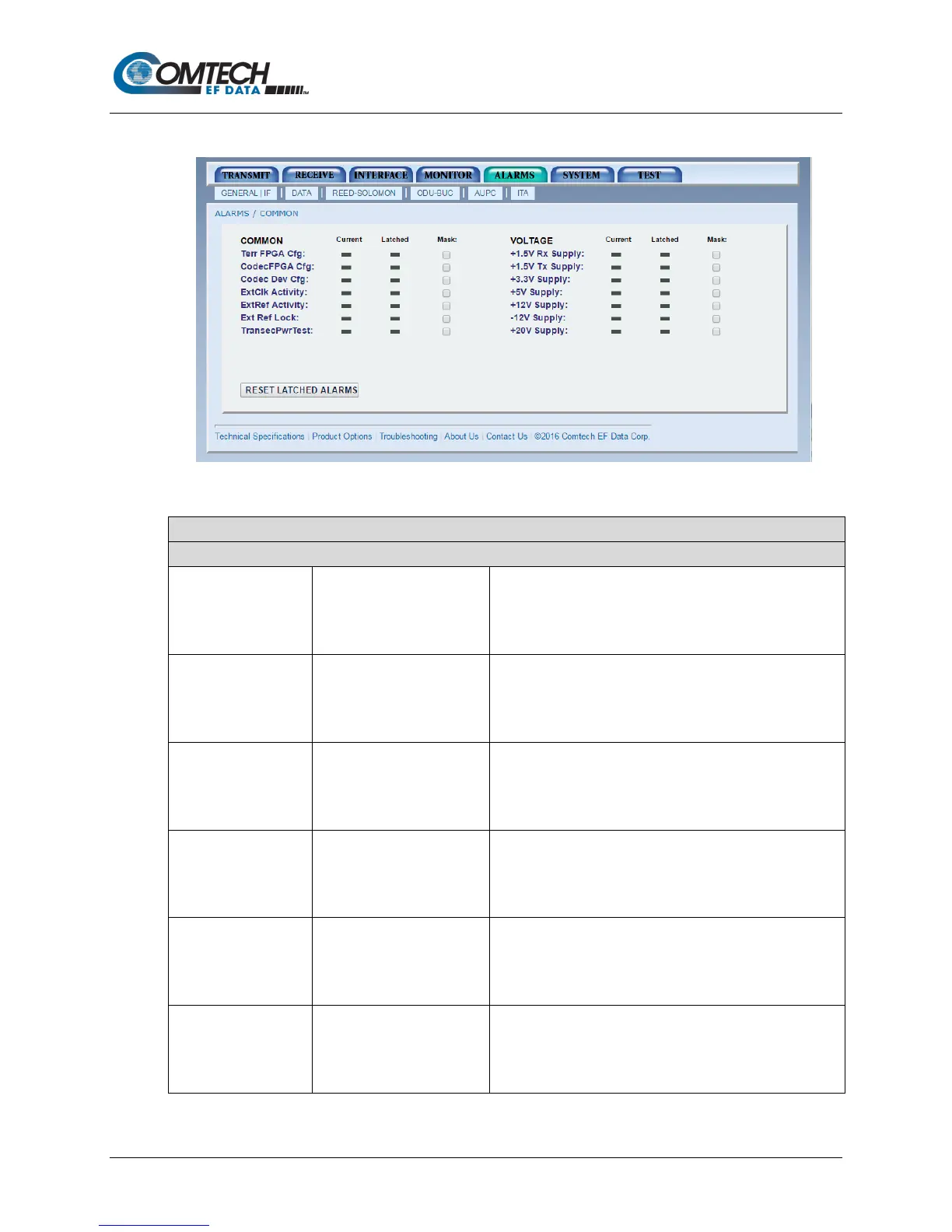

Figure 7-33. Alarms | Common Page Example
Alarms | Common Page
COMMON
Terr FPGA Cfg • Current
• Latched
• Masked (checkmark)
• Unmasked (no check)
This shows if there is an Interface Card FPGA configuration
failure.
Codec FPGA Cfg
•
Current
• Latched
• Masked (checkmark)
• Unmasked (no check)
This shows if there is a Turbo Codec Card FPGA
configuration failure.
Codec Dev Cfg
• Current
• Latched
• Masked (checkmark)
• Unmasked (no check)
This shows if there is a Turbo Codec Card ASIC
configuration failure.
ExtClk Activity • Current
• Latched
• Masked (checkmark)
• Unmasked (no check)
This shows the External Clock is not active.
ExtRef Activity
•
Current
• Latched
• Masked (checkmark)
• Unmasked (no check)
This shows if there is an External Reference Activity failure.
Ext Ref Lock
• Current
• Latched
• Masked (checkmark)
• Unmasked (no check)
This shows the External Reference PLL is not locked.
