98 • DM NAX® Product Manual — Doc. 9045M
DM-NAX-16AIN Installation
Refer to the following sections to install the DM-NAX-16AIN.
l
In the Box on page 98
l
Install the Device on page 99
l
Connect the Device on page 101
l
Observe the LED Indicators on page 103
l
Reset the Device on page 104

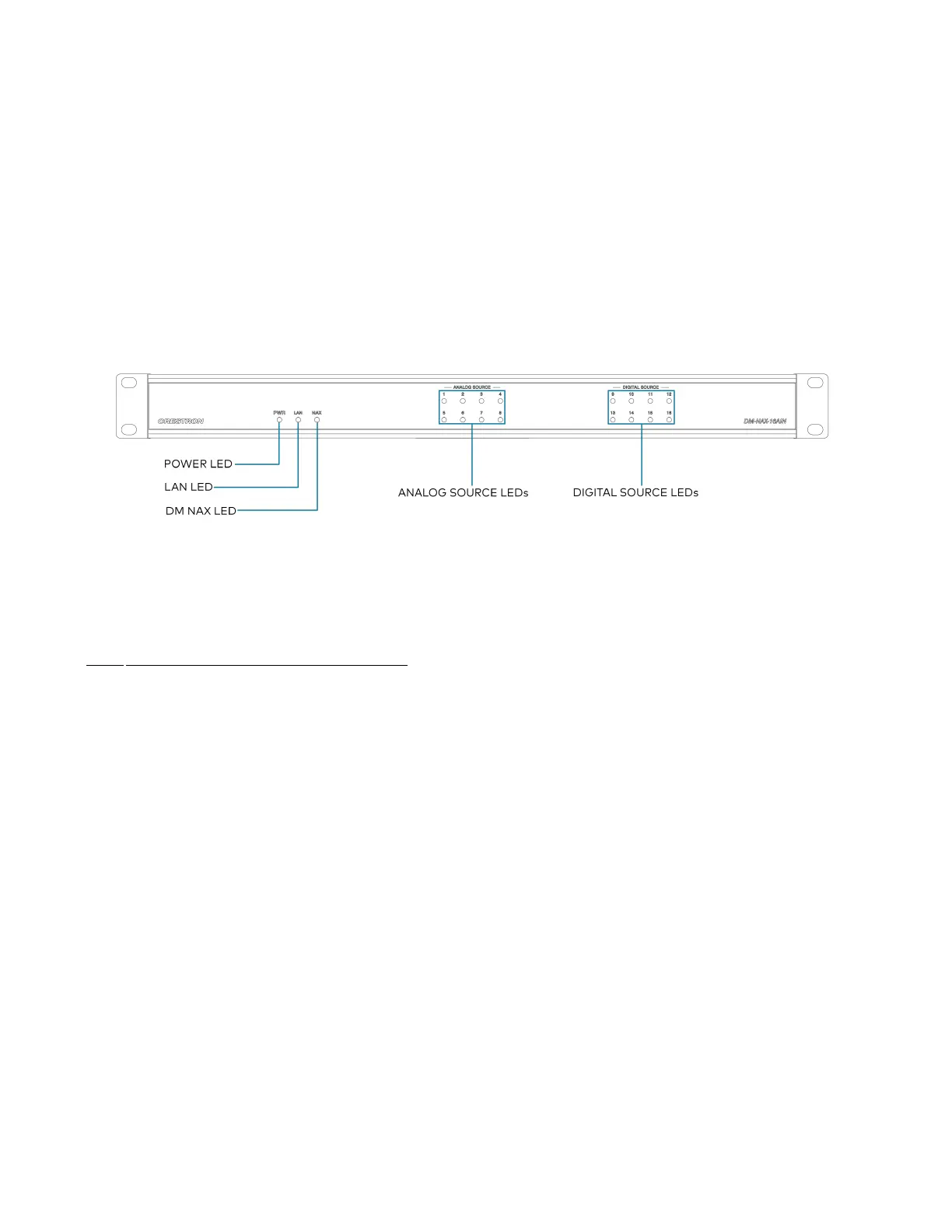

Front Panel
In the Box
Qty. Description
1 DM-NAX-16AIN
Additional Items
2 Bracket, Rack Ear, 1U (2032122)
4 Connector, 5-Pin (2003577)
1 Power Cord, 6 ft 7 in. (2 m) (2001134)
