265 • DM NAX® Product Manual — Doc. 9045M

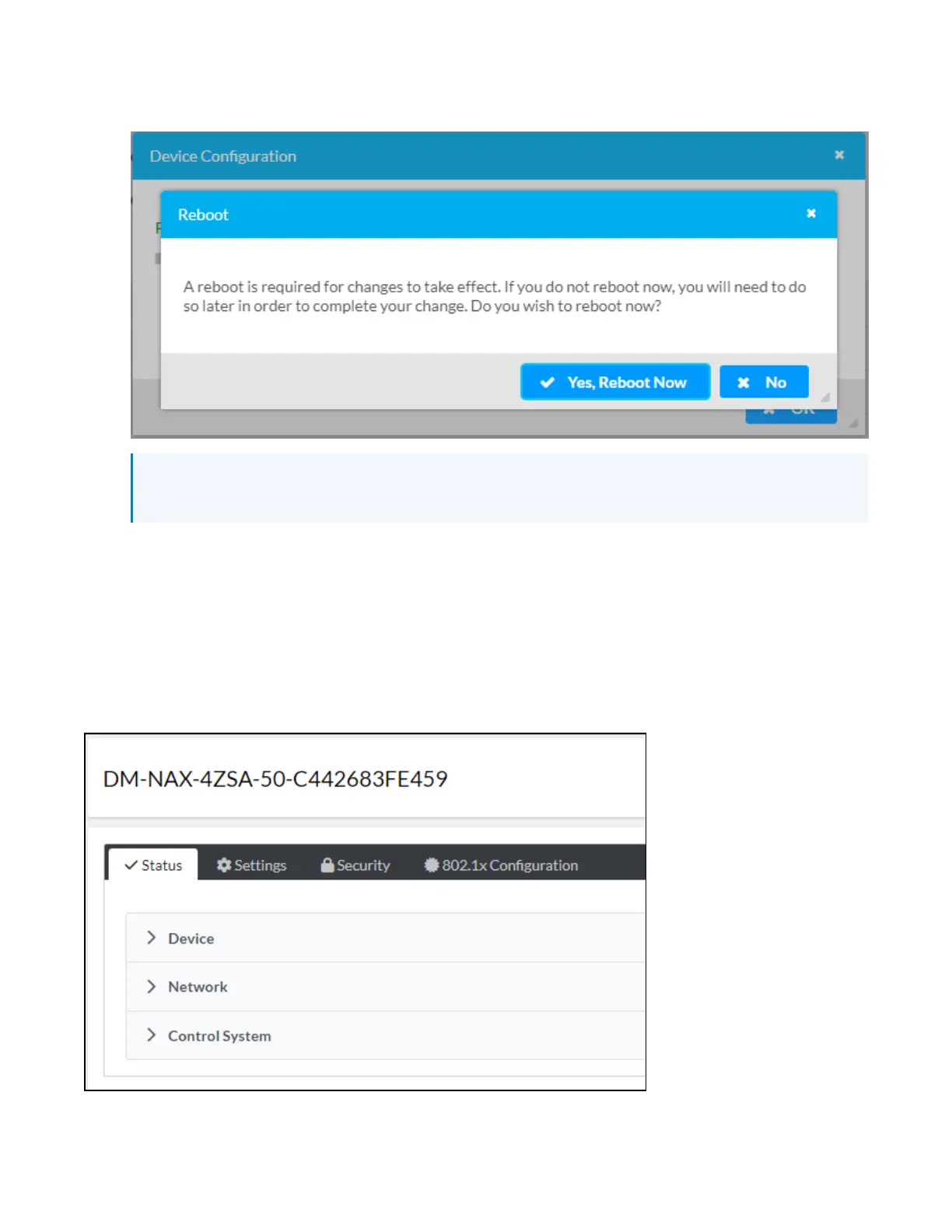

4. Once the upload is complete, the device will require a reboot. Click Yes, Reboot Now to begin the
reboot, or click No to return to the web UI.
NOTE: Any changes made after the configuration file upload, but before a device reboot, may
be overwritten when the device is rebooted.
Status
The Status tab is the first page displayed when opening the interface of the DM-NAX-4ZSA-50. It
displays general information about the DM-NAX-4ZSA-50 (such as Model Name, Firmware Version, and
Serial Number), current network settings (such as Host Name and IP Address, etc.), and input and
output ports' current status.
The Status tab can be accessed at any time by clicking the Status tab of the DM-NAX-4ZSA-50
interface.
