114 • DM NAX® Product Manual — Doc. 9045M
Output Wiring Options

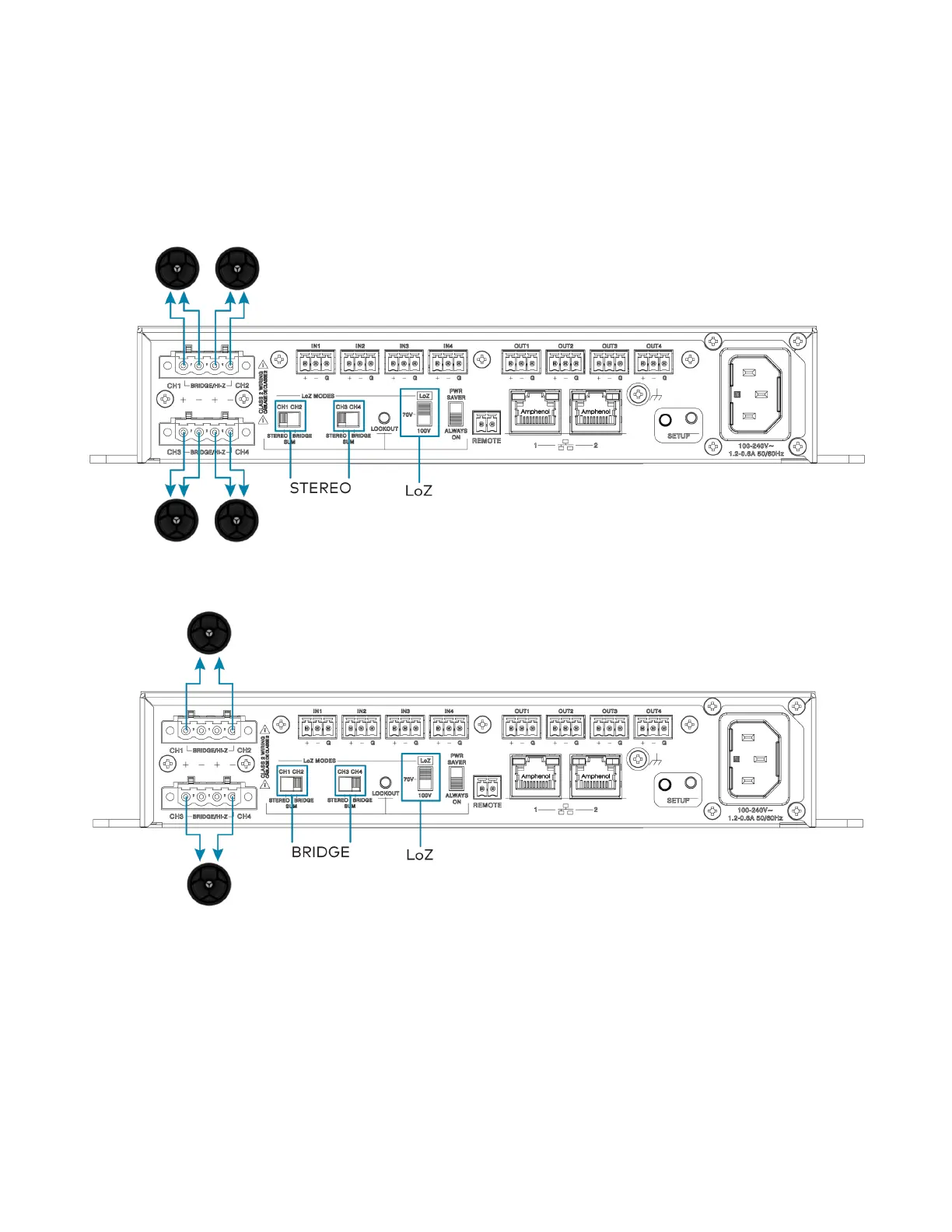

The DM-NAX-AMP-X300 can be configured for low impedance (LoZ) stereo operation over two or four
channels and high impedance (70 V or 100 V) operation over two channels. Refer to the following
diagrams for details.
Four Channels up to 75 W(Lo-Z)
Two Channels up to 150 W(Lo-Z)
