Product Manual — Doc. 9045M DM NAX® • 546
l
Bass: To adjust the bass, do one of the following:
o
Move the Bass slider to the right to increase or to the left to decrease the bass db.
o
Click the db arrows to increase or decrease the db. Values range from -12 db to 12 db,
adjustable in increments of .1 db.
o
Manually enter a value in the Bass field.
l
Treble: To adjust the treble, do one of the following:
o
Move the Treble slider to the right to increase or to the left to decrease the treble db.
o
Click the db arrows to increase or decrease the db. Values range from -12 db to 12 db,
adjustable in increments of .1 db.
o
Manually enter a value in the Treble field.

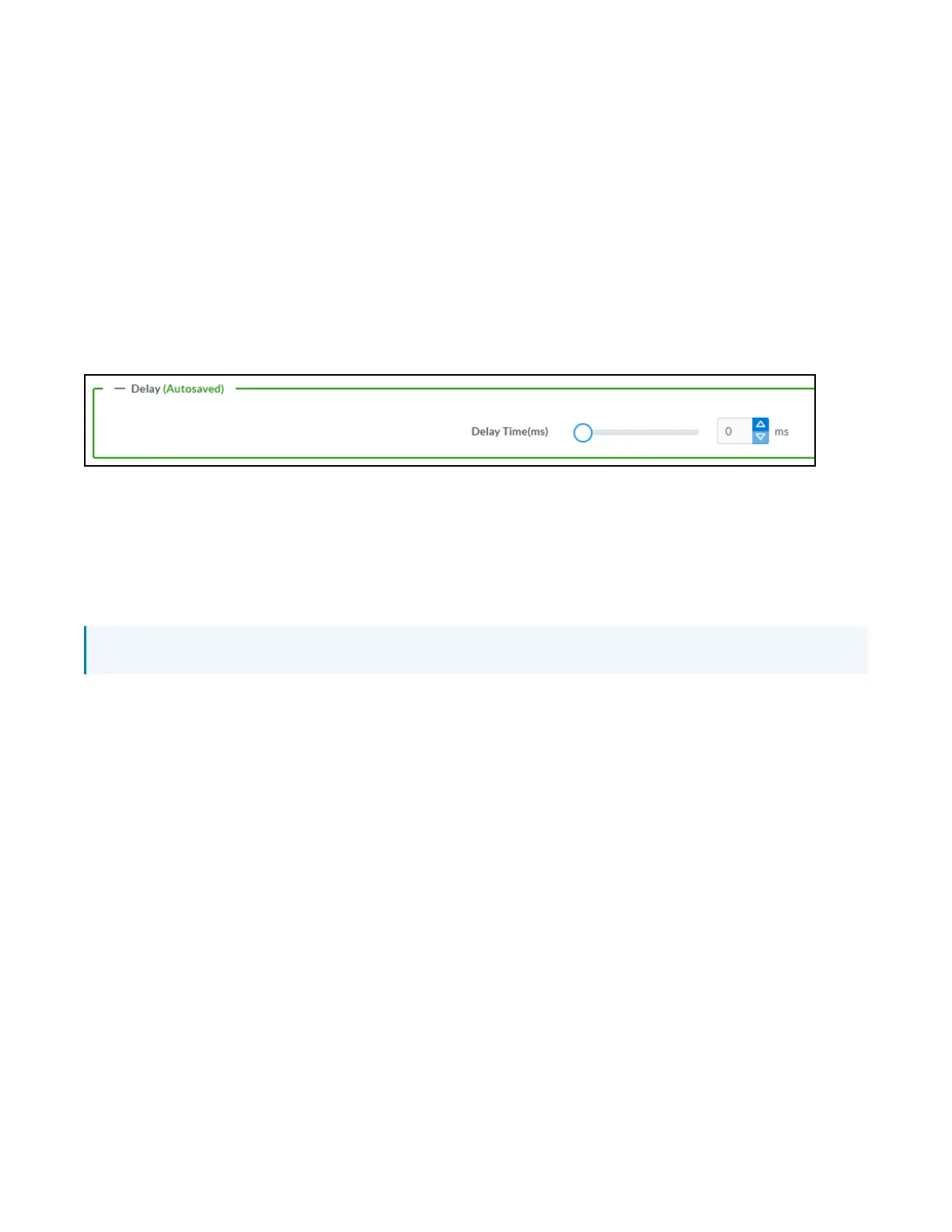

Delay
To set the delay, do one of the following:
l
Move the Delay Time(ms) slider to the right to increase or to the left to decrease the delay time.
l
Click the ms arrows to increase or decrease the delay. Values range from 0ms to 85ms,
adjustable in increments of 1ms.
l
Manually enter a value in the Delay Time(ms) field.
NOTE: The Delay feature is only available on the line level output channels.
Output
Click Output to access the settings for Minimum/Maximum Volume, Signal, and the output Equalizer.
