Mixing

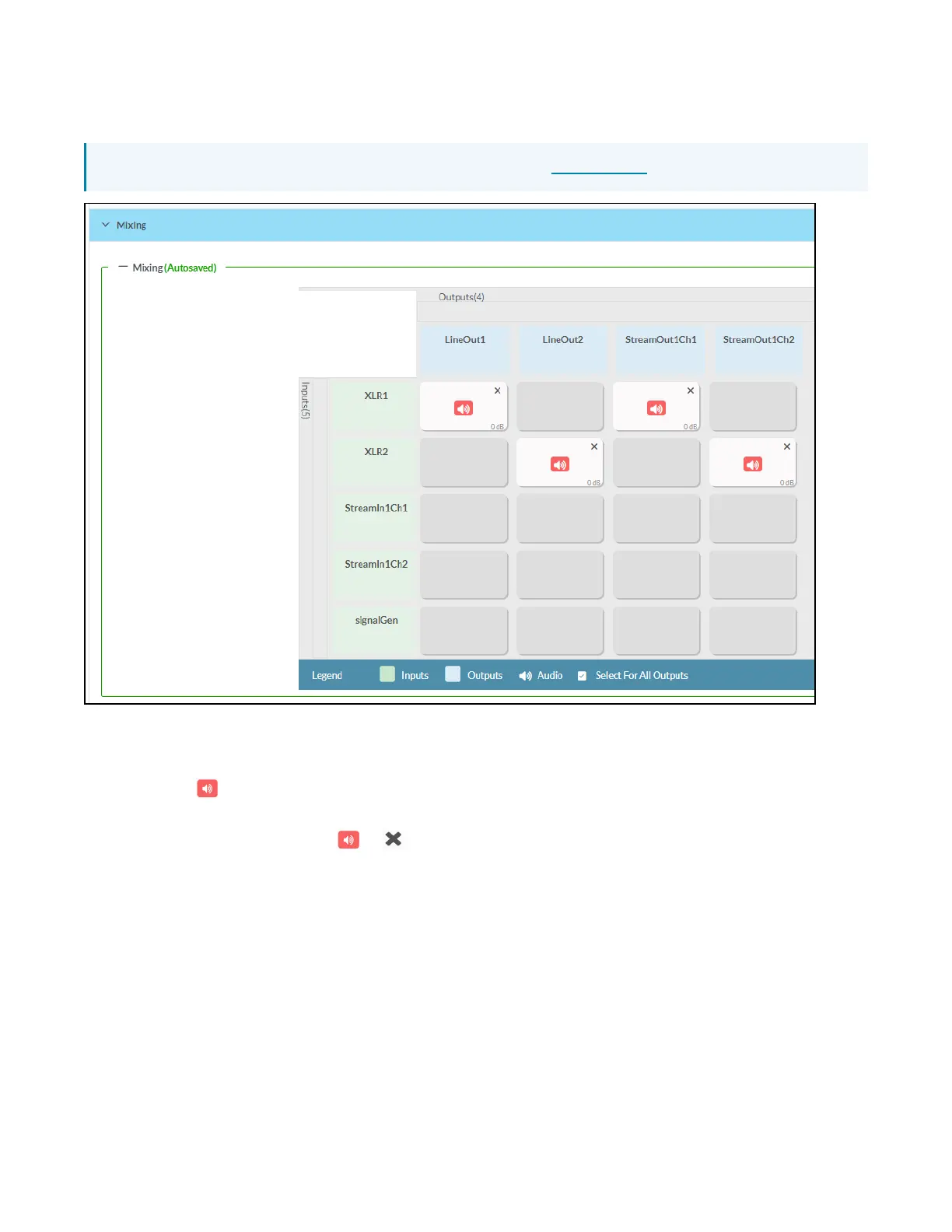

The Mixing matrix is used to route a local input or AES67 stream to an output on the DM-NAX-2XLRI-1G.
NOTE: To receive an AES67 stream from Dante devices, see OLH 1001151.
To route inputs to outputs on the device:
l
Click the cells corresponding to the desired output that are to be paired for routing. Once a route
is made, appears. The input that you have selected for a given row will route to the output
corresponding to that row in the matrix.
l
To break a given route click or .
Each output can have any number of inputs routed to it. To adjust the mix setting for a route, click the
dB value of the cell, then do one of the following:
l
Move the slider up to increase or down to decrease the mix level.
l
Click the arrows to increase or decrease the mix level.
l
Manually enter a value in the field.
