16 • DM NAX® Product Manual — Doc. 9045M
Rear Panel

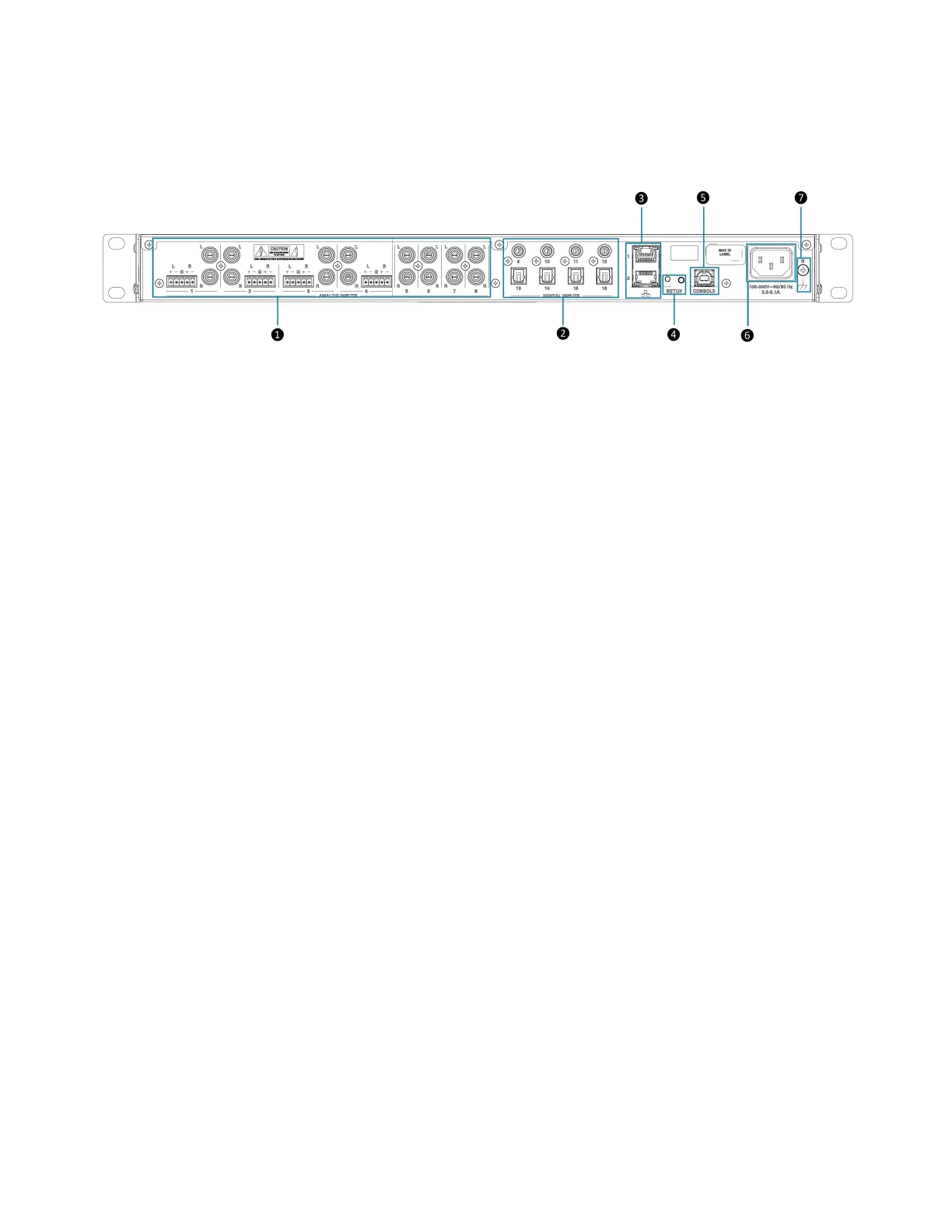

The following illustration shows the rear panel of the DM-NAX-16AIN.
❶
ANALOG INPUTS: (8) RCA female comprising (4) unbalanced stereo line-level
audio inputs;
(4) 5-pin phoenix balanced connector;
Input Impedance: 10000 Ω;
Maximum Input Level: 2 Vrms
❷
DIGITAL INPUTS: (4) JIS F05 female TOSLINK® optical fiber connectors, S/PDIF
optical digital audio inputs;
(4) RCA female; S/PDIF coaxial digital audio inputs;
Input Impedance: 75 Ω
❸
Ethernet 1: (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
Green LED indicates Ethernet link status;
Flashing amber LED indicates Ethernet activity
Ethernet 2: (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
Green LED indicates Ethernet link status;
Flashing amber LED indicates Ethernet activity
❹
SETUP: (1) Push button: Pressing and holding the SETUP button for 15 seconds
with power supplied clears network settings and restores the default DHCP mode;
Pressing and holding the SETUP button with power disconnected, then connecting
the power supply and continuing to hold SETUP button for 30 seconds performs a
factory restore;
(1) LED, illuminates red when the button is pressed, flashes red when reset has been
initiated
❺
CONSOLE: (1) Standard USB 2.0 Type B connector, female
❻
POWER INLET: (1) 100-240V~50/60Hz Universal AC; IEC 60320 C14 Main power
inlet, mates with removable power cord (included)
