Balanced/Unbalanced Audio Input

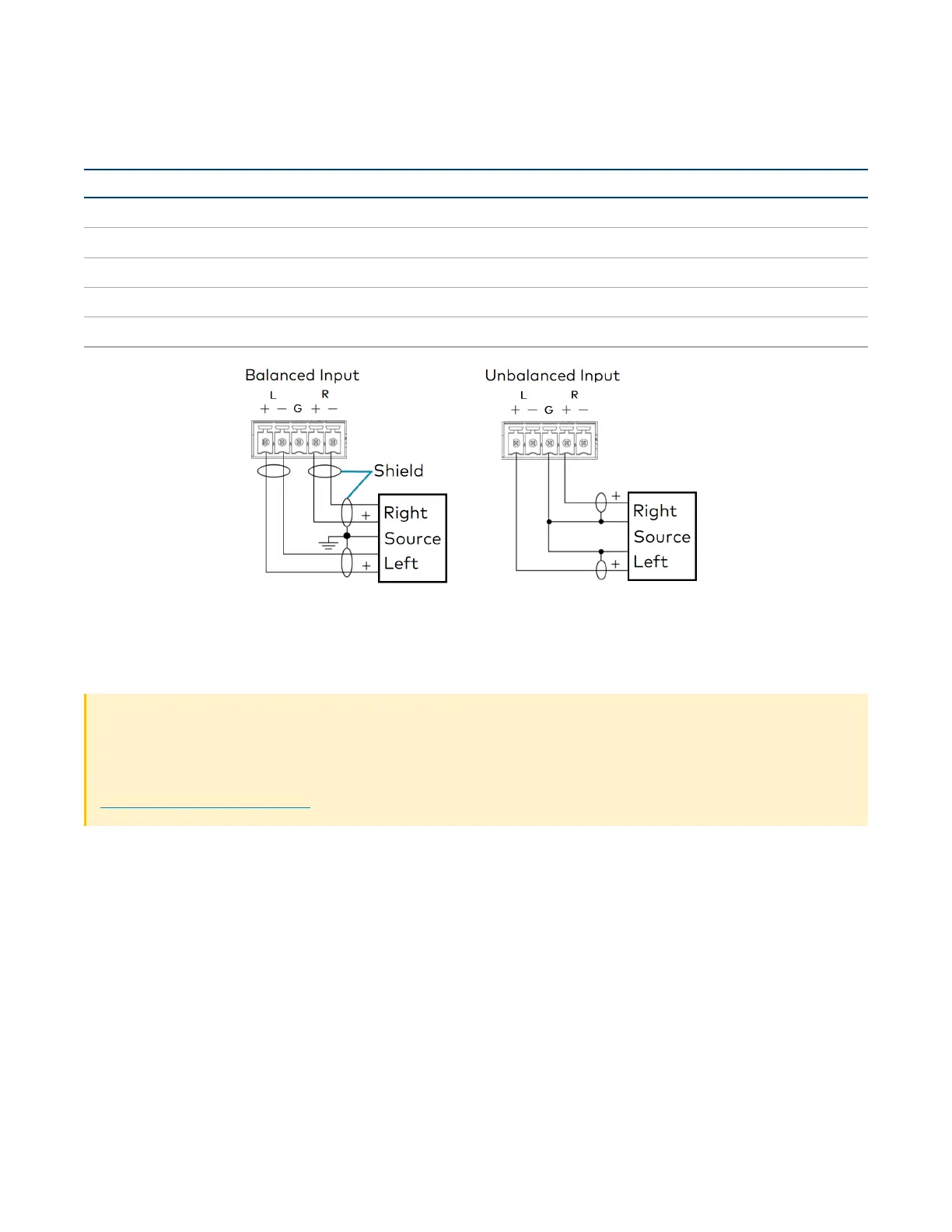

Refer to the following table and illustration for analog audio input pin assignments and connection
information.
Signal Name Balanced Audio Input Unbalanced Audio Input
+ L+ L+
- L− Open
G Shield/ground Open
+ R+ R+
- R- Open
Reset the Device
A network reset or factory restore may be performed when troubleshooting.
CAUTION: These procedures should only be performed as a last resort to recover an unresponsive
device. Both the Network Reset and Factory Restore procedure will clear certain device settings that
cannot be recovered once the procedure is complete. Before performing these procedures, please
contact Crestron True Blue Support via phone, email or chat as described at
www.crestron.com/support.
Network Reset
1. Ensure the device is powered on.
2. Press and hold the SETUP button for up to 15 seconds until the SETUP LEDflashes red.
The device will reboot, and the default network settings will be reset. The device will be reverted to its
default hostname, with DHCP enabled, and no static IP set.
