Product Manual — Doc. 9045M DM NAX® • 69

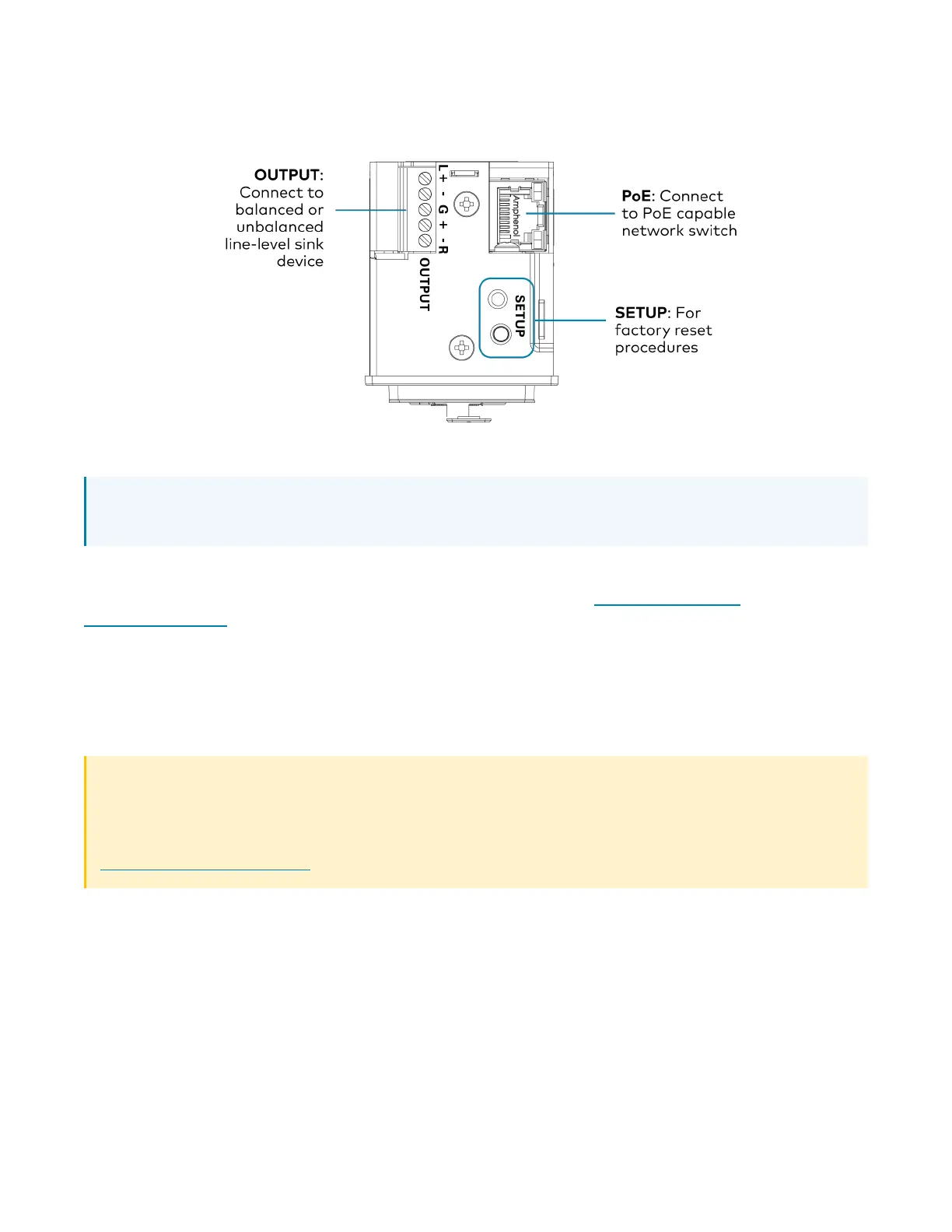

Top Panel
NOTE: PoE is a PoE powered device (PD) port. In order for the port to receive PoE, it must be
connected to a PoE compliant Ethernet switch.
Connect a PoE capable network switch to the PoE port.
Connect a balanced or unbalanced line level sink device (such as the MP-WP-2RCAO-1G or
MP-WP-2XLRO-1G, sold separately) to the OUTPUT port
Connect XLR sources to the front panel XLR connections.
Reset the Device
A network reset or factory restore may be performed when troubleshooting.
CAUTION: These procedures should only be performed as a last resort to recover an unresponsive
device. Both the Network Reset and Factory Restore procedure will clear certain device settings that
cannot be recovered once the procedure is complete. Before performing these procedures, please
contact Crestron True Blue Support via phone, email or chat as described at
www.crestron.com/support.
Network Reset
1. Ensure the device is powered on.
2. Press and hold the SETUP button for up to 15 seconds until the SETUP LEDflashes red.
The device will reboot, and the default network settings will be reset. The device will be reverted to its
default hostname, with DHCP enabled, and no static IP set.
