Product Manual — Doc. 9045M DM NAX® • 444
l

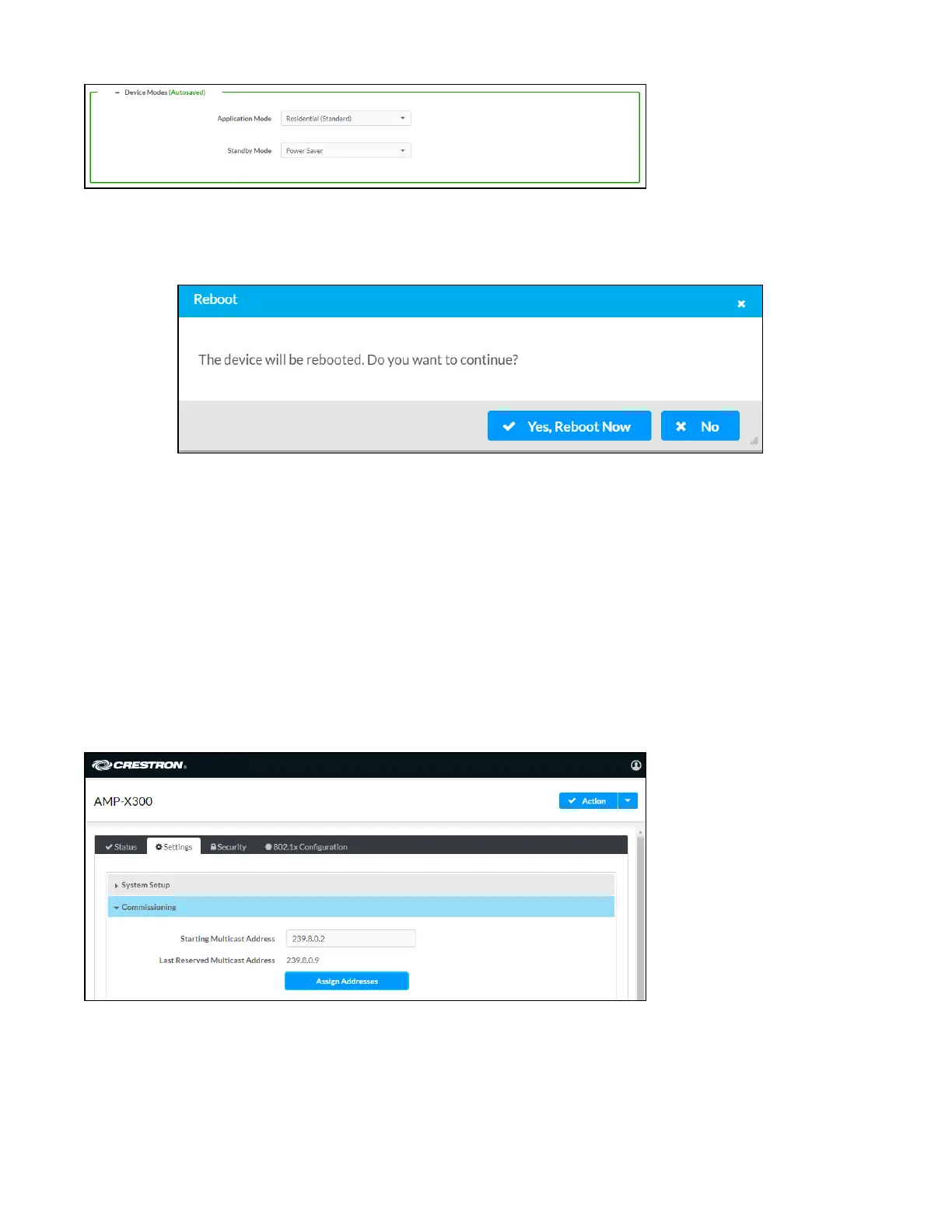

Application Mode:The Application Mode determines which options and controls are available.
o
Select Residential (Standard) or Commercial (Advanced). A Reboot confirmation message
box appears.
o
Click Yes, Reboot Now to reboot the device into the selected mode. The Reboot message
box appears.
o
Wait for the device reboot to complete before attempting to reconnect to the device.
l
Standby Mode:Select the DM-NAX-AMP-X300's standby behavior.
o
Always On: The device's amplifier remains powered on at all times.
o
Power Saver: If no signal is detected for 25 minutes, the device enters a low power state by
turning off the amplifier board. Upon detecting an audio signal, the amplifier will be turned
back on.
Commissioning
The Commissioning section provides a quick way to automatically assign multicast addresses to all of
the device's internal audio-over-IP stream transmitters.
Click Assign Addresses to give each DM NAX transmitter in the DM-NAX-AMP-X300 a unique multicast
address beginning with the specified Starting Multicast Address. The valid range for Starting Multicast
Address is 239.8.0.0 to 239.127.255.255.
