12 • DM NAX® Product Manual — Doc. 9045M
Having higher output-count zone configurations on a single DM-NAX-8ZSA will affect the total
available zone count on a given box. For example, if you have a single bridged 2.1 configuration on an
DM-NAX-8ZSA, it will lower the maximum zone count to six, as the bridged 2.1 consumes three zones
worth of speaker outputs on its own.

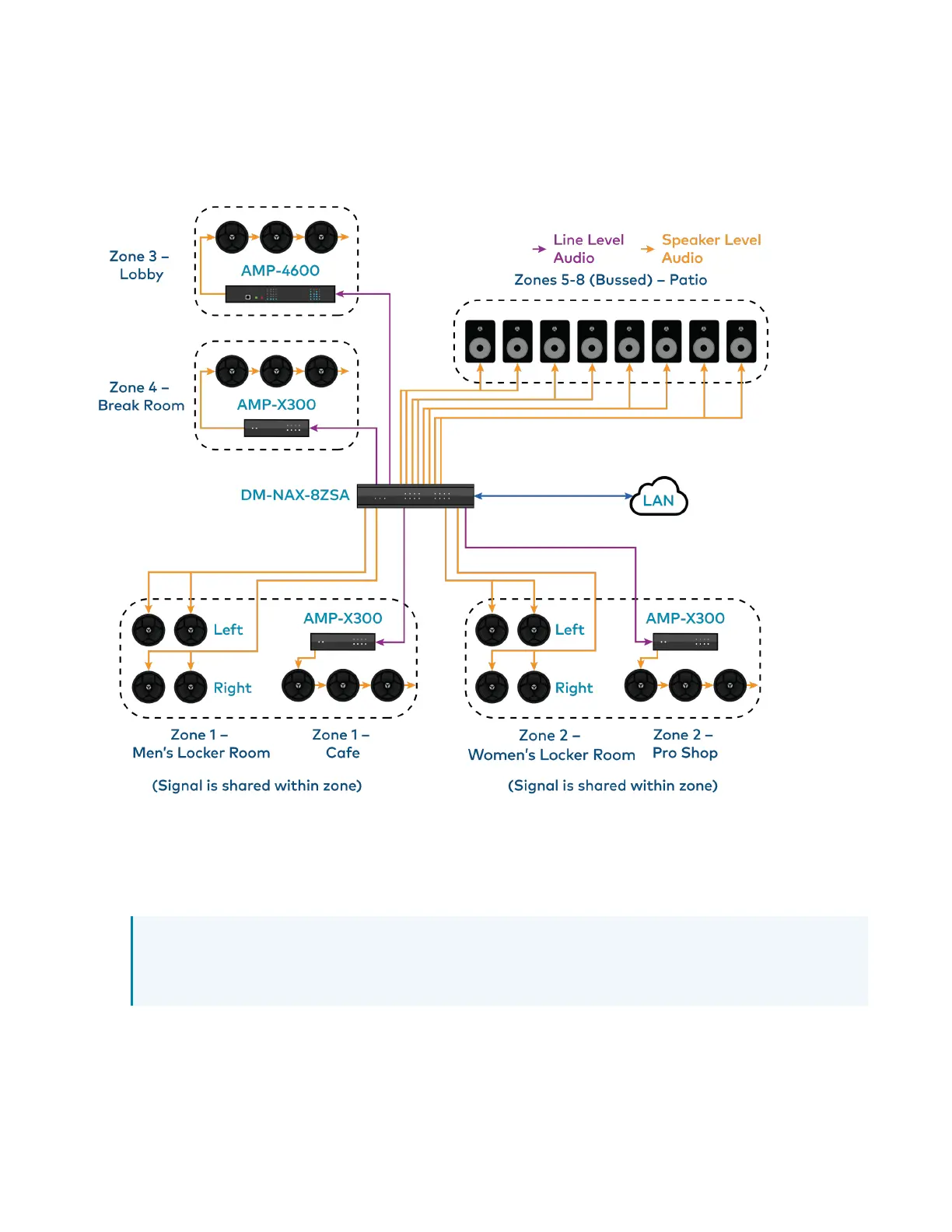

This application diagram shows the following setup:
l
Mirrored zones (Zone 1 and Zone 2 each have two rooms receiving the same audio signal)
l
Parallel wiring of low impedance speakers in two Locker Room areas
NOTE: This is a parallel wiring of 8 Ω speakers for a total supported load of 4 Ω per channel.
Parallel wiring lowers the effective impedance of the connected loads, so make sure the
speakers impedance matches the supported impedance levels from the DM-NAX-8ZSA.
l
Using the line outputs of the DM-NAX-8ZSA to feed high-impedance amplifiers (AMP-X300s and
AMP-4600) for long speaker runs
