Product Manual — Doc. 9045M DM NAX® • 438

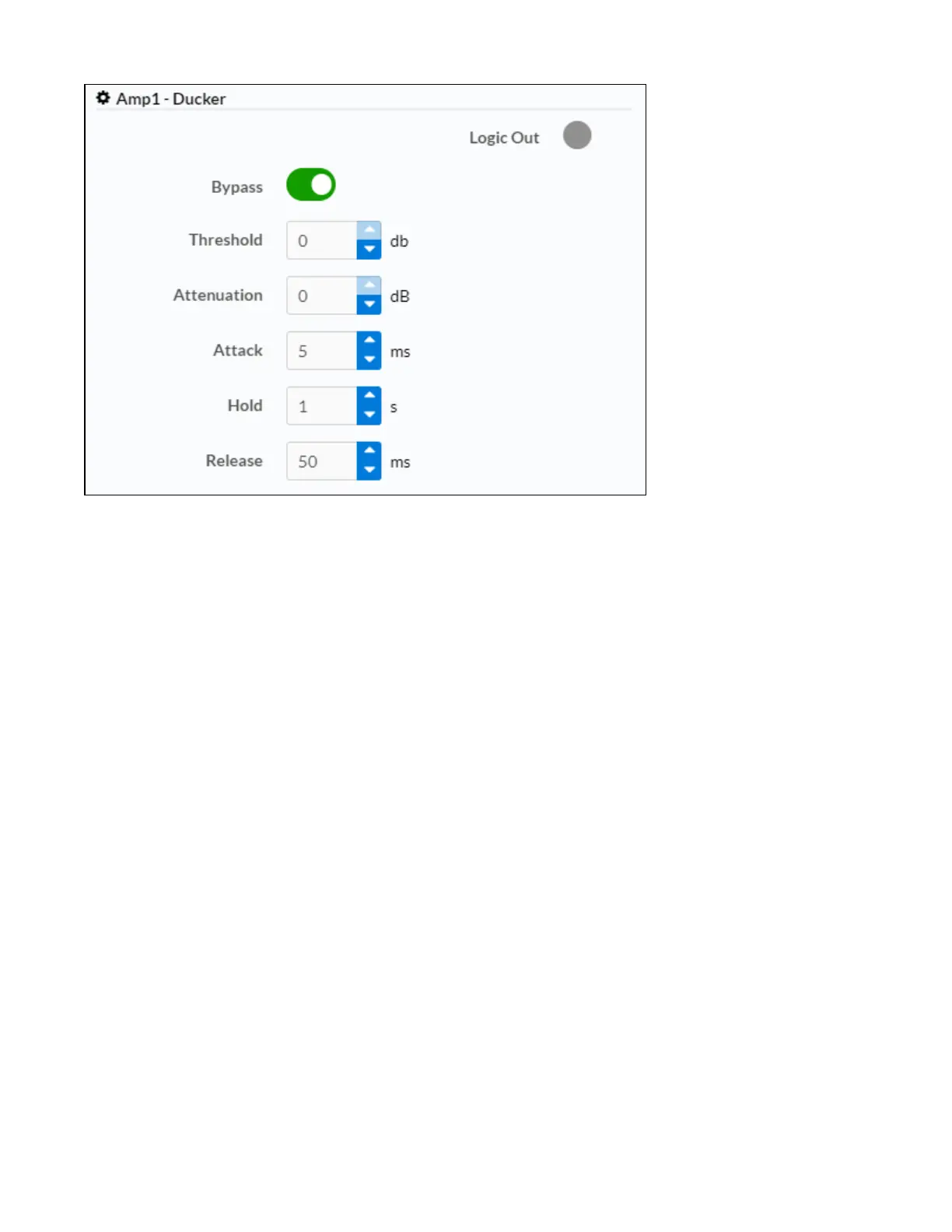

Logic Out:This indicator turns blue when the ducker is active.
Bypass: Set the Bypass toggle to the right position to bypass the ducker. Set the toggle to the left to
enable the ducker.
Threshold: Set the dB value at which the ducker engages. Use the arrows or enter a number to set the
dB value for the Threshold. Values range from 0dB to -60dB.
Attenuation: Set the dB value by which the Mixing matrix output signals will be reduced when ducking is
triggered. Use the arrows or enter a number to set the dB value for the Attenuation. Values range from
0dB to -80dB.
Attack: Set how quickly the ducking occurs once triggered. Use the arrows or enter a number to set
value in ms for the Attack. Values range from 0.1ms to 2000ms.
Hold: Set the length of time for which the ducker will stay at full attenuation once the ducking signal
passes the Threshold. Use the arrows or enter a number to set a value in seconds for the Hold. Values
range from 0.1s to 20s.
Release: Set the time for the Mixing matrix output signal to return to its full level after the ducking
signal falls below the threshold and the Hold time ends. Use the arrows or enter a number to set the
value in ms for the Release. Values range from 10ms to 4000ms.
