User's Manual
8

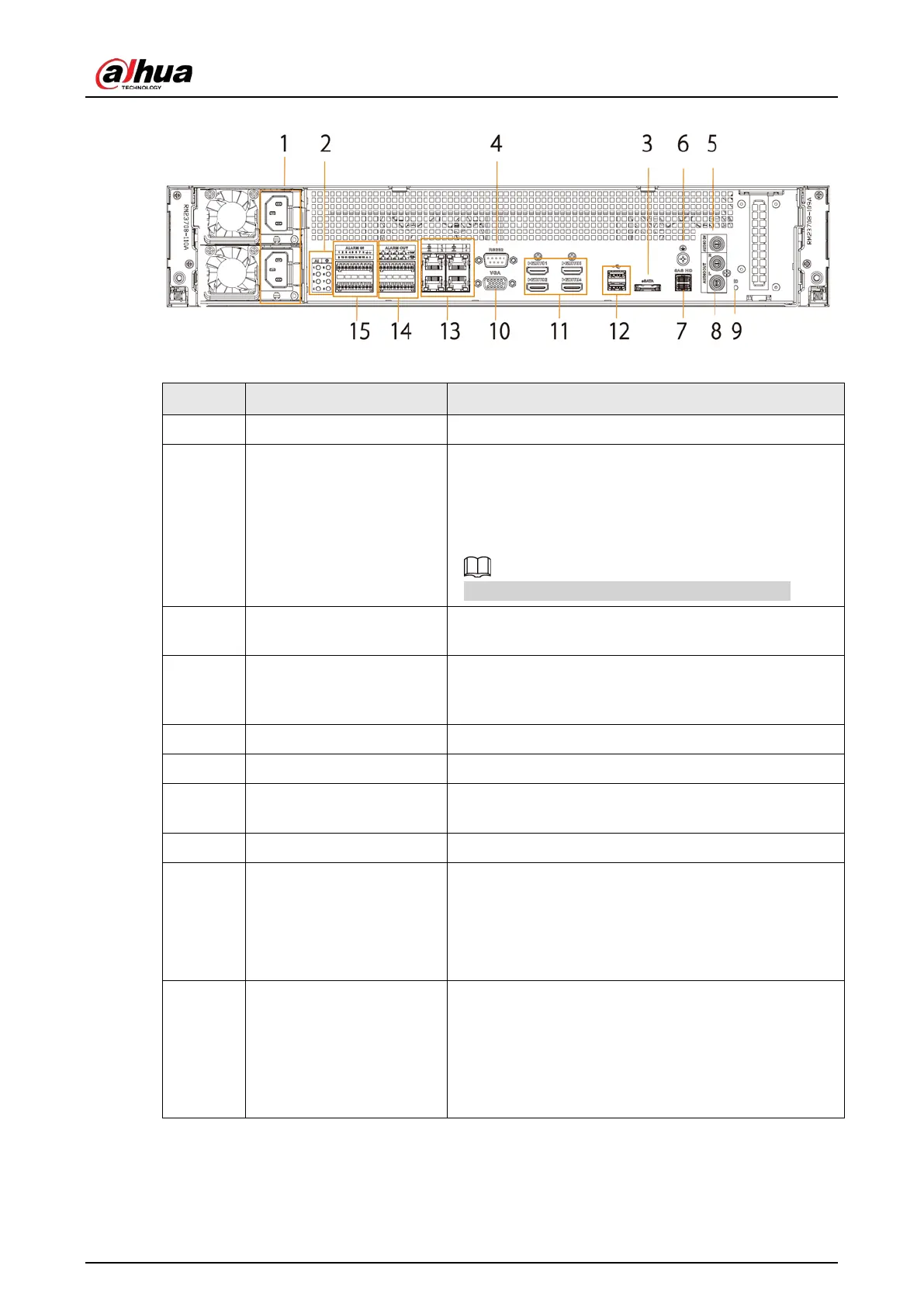

Figure 2-11 IVSS7112 rear panel (with single power supply)
Table 2-4 Rear panel description
No. Name Description
1 Power input port Inputs 100–240 VAC power.
2 AI module indicator light
Displays AI module status.
●
The yellow light flashes: AI module is running
properly.
●
The yellow light is on: AI module is malfunctioning.
This function is not available without AI module.
3 eSATA port
SATA peripheral port. Connect to SATA port or eSATA
device.
4 RS-232 port
RS-232 COM debug. It is for general COM debug,
setting IP address, and transmitting transparent COM
data.
5 AUDIO IN Audio input port.
6 GND Ground port.
7 SAS port
SAS extension port. It can connect to the SAS extension
controller.
8 AUDIO OUT Audio output port.
9 ID indicator light
Positioning indicator light. It is controlled by the ID
button on the front panel.
●
The blue light is on, device is positioning now.
●
The indicator light is off: The device is not
positioning.
10 VGA port
VGA video output port. Output analog video signal. It
can connect to the monitor to view analog video. The
VGA ports are different source output. VGAn and
HDMIn are same source output. For example:
●
VGA1 and HDMI 1 are same source output.
●
VGA2 and HDMI 2 are same source output.
