User's Manual
12
No. Button/Port Description
3
System status
indicator light
Displays the system running status.
The blue light is on: Device is running properly.
The indicator light is off: The device is not running.
4 Alarm indicator light
Displays local input alarm status.
Red indicator light is on: There is local alarm input event.
The indicator light is off: There is no local alarm input
event.
5
Network indicator
light
Displays current network status.
The indicator light is blue: It means at least one Ethernet
port has connected to the network.
The indicator light is off: No Ethernet ports are connected
to the network.
6 USB port
Connects to external devices such as USB storage device,
keyboard and mouse.
7 16-HDD slot
After you remove the front panel, you can see there are 16
HDDs. From the left to the right and from the top to the
bottom, it ranges from 14, 58, 912, and 1316.
There are two indicator lights on the HDD slot: HDD indicator
light and HDD read/write indicator light.
: HDD indicator light. The light is yellow after you install
the HDD.
: Read/write indicator light. The blue light flashes when it
is reading and writing data.

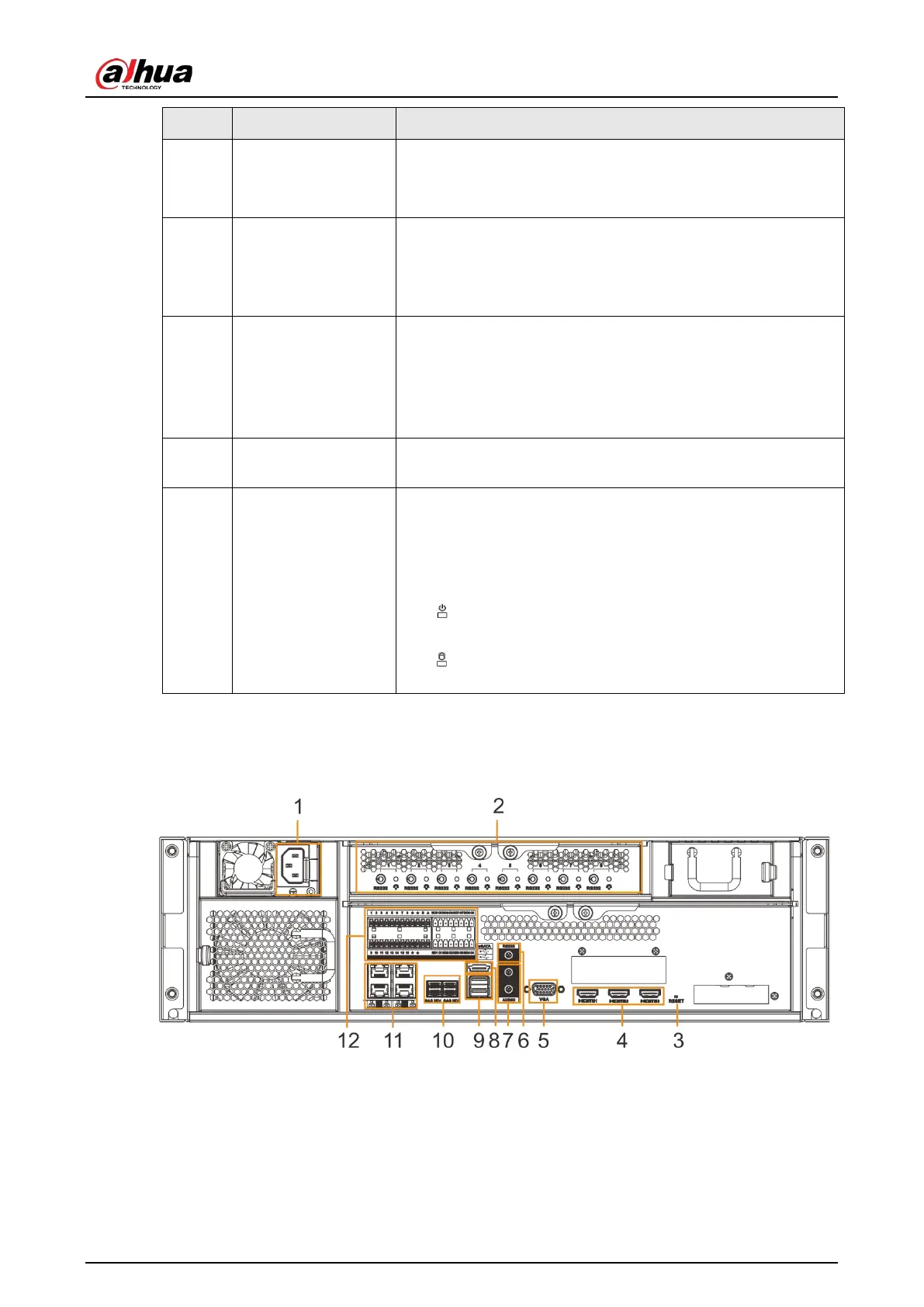

2.3.2 Rear Panel
Figure 2-15 IVSS7016 rear panel (single power)
