Chapter 2 Install the Hardware
40 Storage Center SC8000 Controller Deployment Guide
4 Insertriser1.
a Aligntheriserwiththeconnectorandtheriserguides.
b Lowertheriserintoplaceuntiltheriserisfullyseatedinthe connector.

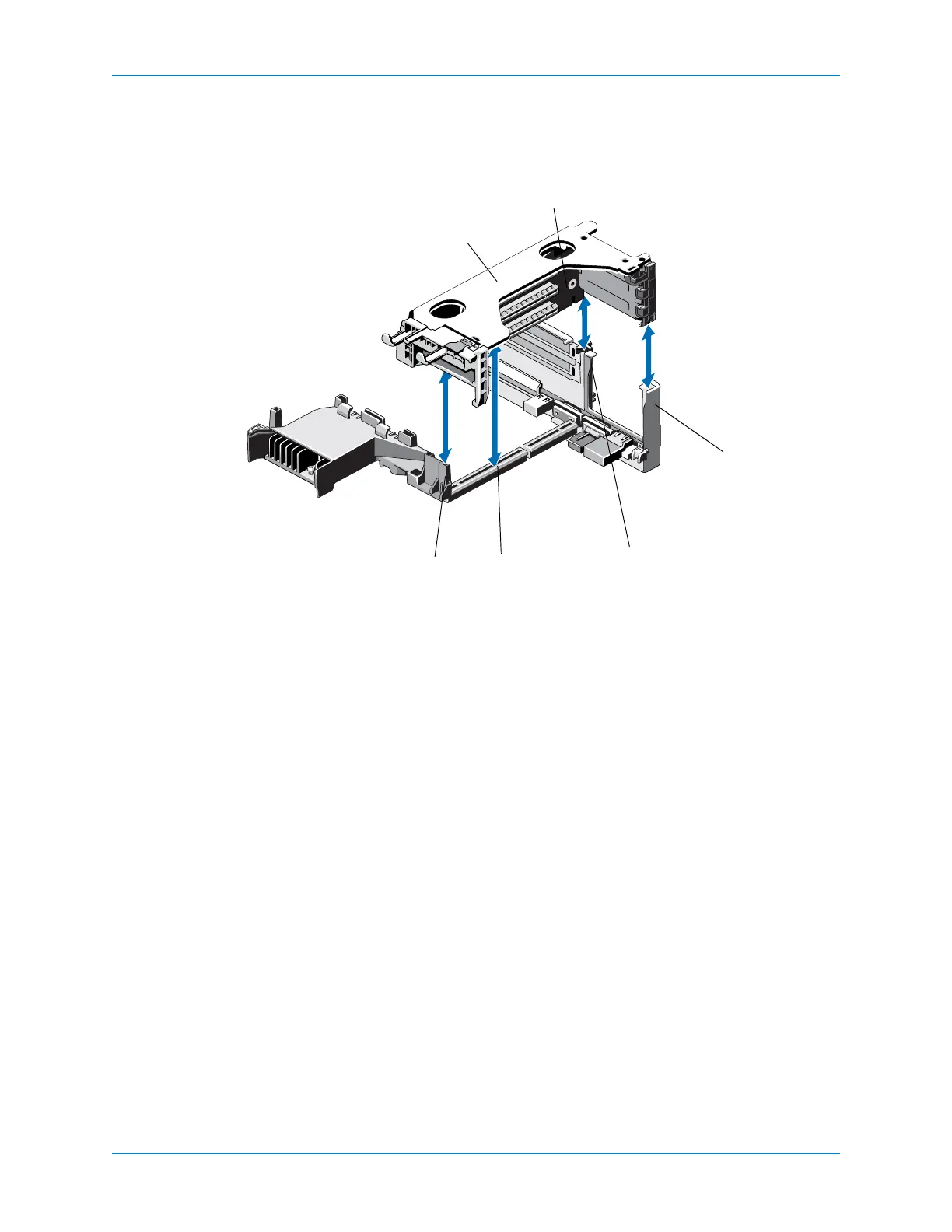

Table 2. Removing Riser 1
1 Riser 1 cage 4 Riser guide, back (left)
2 Riser 1 5 Riser 1 connector
3 Riser guide, back (right) 6 Riser guide, front
1
2
3
4
5
6
