Install IO Cards the Controller(s)
Dell Compellent 41
Install Full-Height IO Cards in Slots 4–6
Installfull‐heightIOcardsinstalledinriser2and3.Slots4and5arelocatedinriser2,and
slot6islocatedinriser3.
1 Locate theslotwheretheIOcardisinstalled.

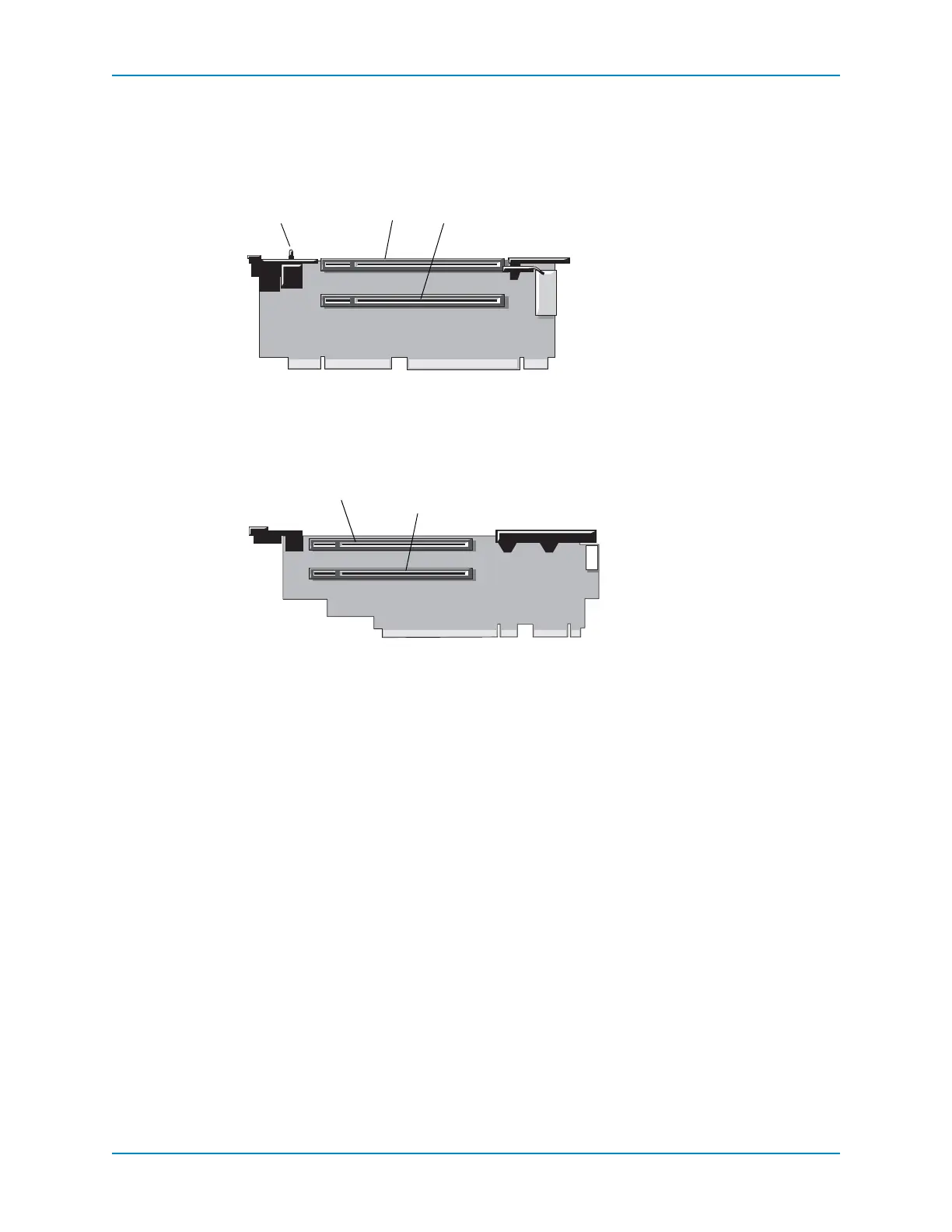

Figure 36. Identifying Connectors on Riser 2
Figure 37. Identifying Connectors on Riser 3
1 Chassis intrusion switch
2 IO card slot 4
3 IO card slot 5
1 IO card slot 6
2 IO card slot 7
1
3
2
1
2
