Delta VFD-E Series User Manual

1-8

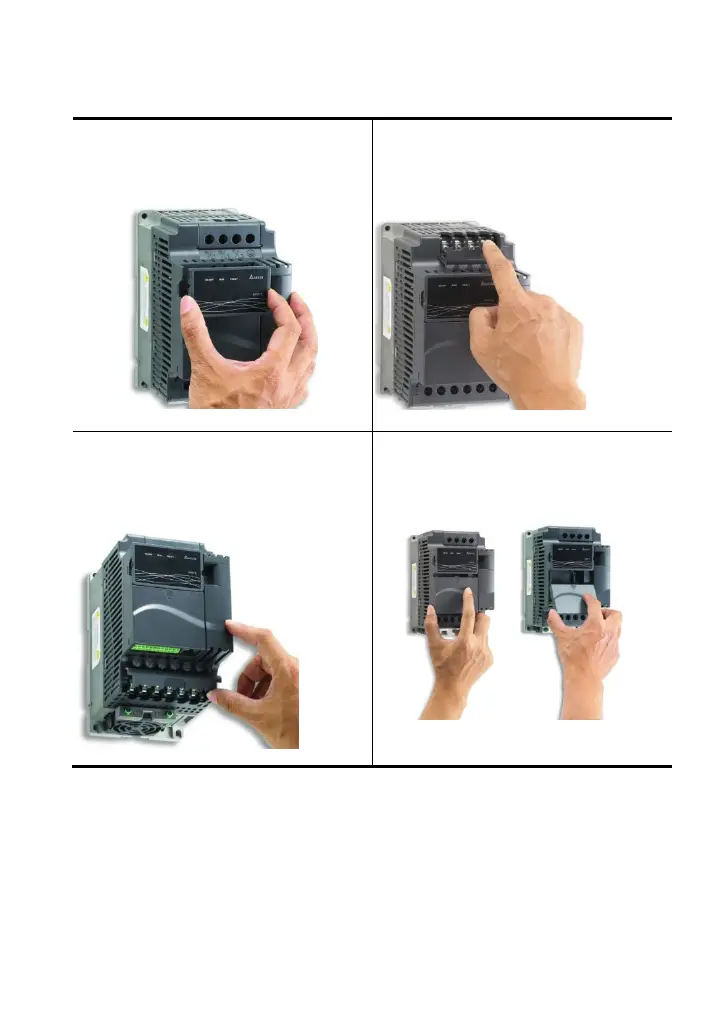

1.1.5 Remove Instructions
Remove Keypad
Press and hold in the latch on each side of
cover then pull the cover up to release.
Remove RST Terminal Cover
For Frame B, C and D: it only needs to turn the
cover lightly to open it.
For Frame A, it doesn’t have cover and can be
wired directly.
Remove UVW Terminal Cover
For Frame B, C and D: it only needs to turn the
cover lightly to open it.
For Frame A, it doesn’t have cover and can be
wired directly.
Remove Front Cover
Press the control board terminal cover first as
shown in Figure A, then slide downwards as
shown in Figure B, you can easily remove it.
Figure A Figure B
