B-4

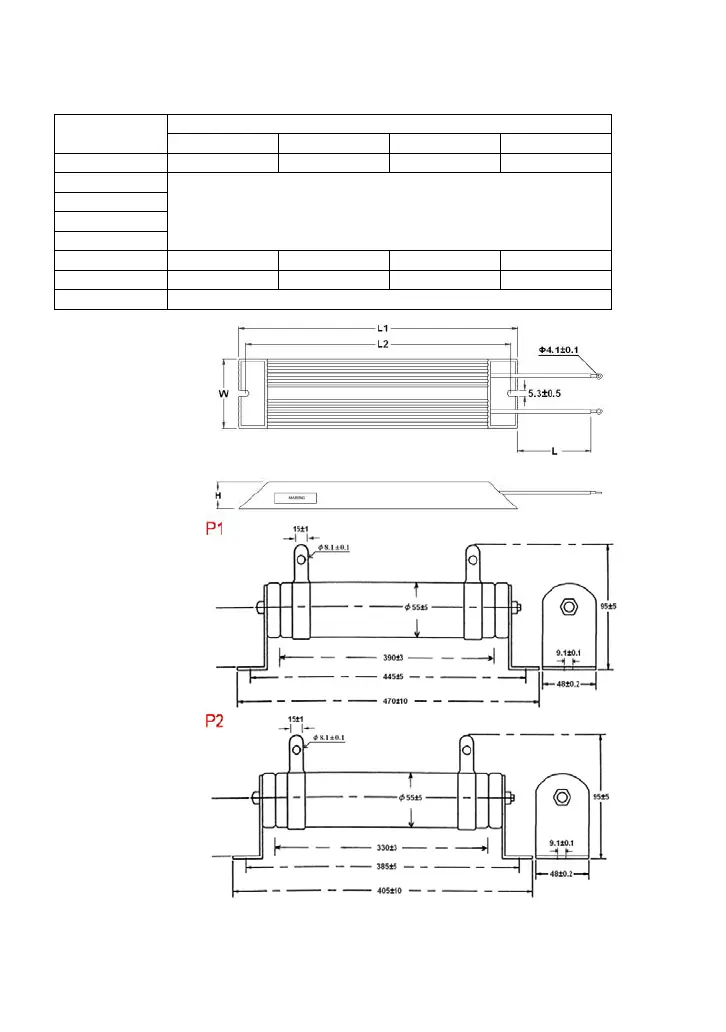

B.1.1 Dimensions and Weights for Brake Resistors
Brake Resistors
Model no.
Dimension (mm)
L1±2 L2±2 W±0.5 H±0.5
BR080WXXX 140 125 40 20
BR1K0WXXX
P1
BR1K1WXXX
BR1K2WXXX
BR1K5WXXX
BR200W360 165 150 60 30
BR300WXXX 215 200 60 30
BR750W033 P2
