B.12 KPC-CC01 keypad
Due to VFD-E default communication protocol is ASCII 9600, 7, N, 2, but KPC-CC01 communication
protocol is RTU 19200, 8, N, 2, you need to set VFD-E
communication parameters so that it can
connect with
KPC-CC01. Set Pr.09.00=1, 09.01=2, 09.04=3 and you can select operating functions by
pressing KPC-CC01 MENU key. Please refer to CH.4 Pr.09 Group for details.
Pr.09.00 Communication Address
Pr.09.01 Transmission Speed (Baud rate)
Pr.09.04 Communication Protocol
KPC-CC01 is communicating with control board by using 255 communication station, so if the
Transmission Speed is corresponding with Communication Protocol, the control board can receive
packet properly, it can judge as keypad devices and communicate mutually.
Digital Keypad only can support the serial production after product series No.: xxxExxAxT205xxxx,
xxxExxAxW202xxxx.
Some parameters cannot be copied by using PU06, KPC-CC01 or VFDSoft, please refer to B-5 Digital
Keypad PU06 for details.

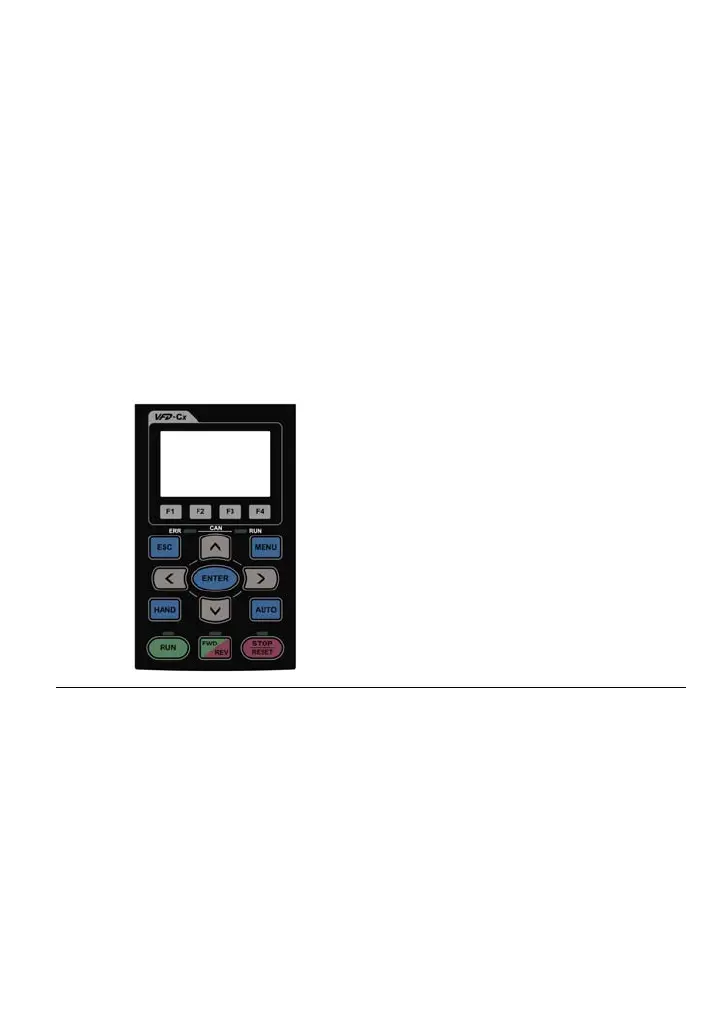

Descriptions of Digital Keypad
KPC-CC01
Communication Interface:
RJ-45 (socket)、RS-485 interface
Installation:
Embedded, it can flat the control box
surface and front waterproof.
You can select optional model:
MKC-KPPK, the protection level is IP56;
user can choose wall mounting or
embedded mounting.
