Delta VFD-E Series User Manual

B-12
B.4 Remote Controller RC-01

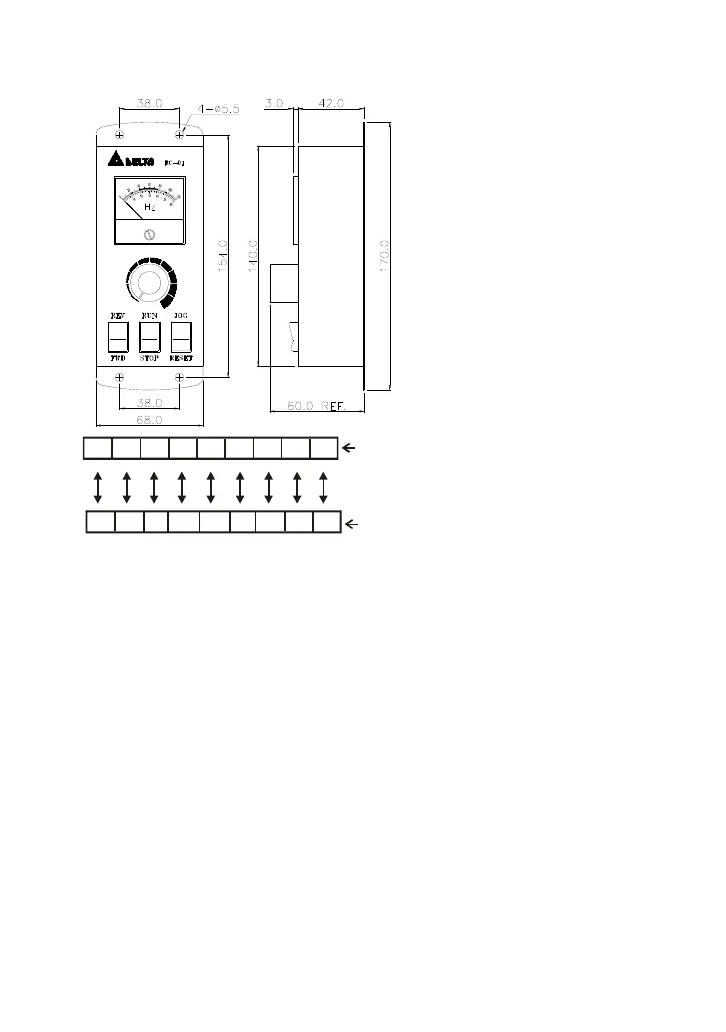

Dimensions are in millimeter
AFMACM +10VAVI DCM MI5 MI1 MI2 MI6
86
5
4 16151413 11
RC-01Terminal block
(Wiring connections)
VFD-E I/O block
VFD-E Programming:
Pr.02.00 set to 2
Pr.02.01 set to 1 (external controls)
Pr.04.04 set to 1 (setting Run/Stop and Fwd/Rev controls)
Pr.04.07 (MI5) set to 5 (External reset)
Pr.04.08 (MI6) set to 8 (JOG operation)
