Delta VFD-E Series User Manual

Chapter 2 Installation & Wiring
2-19
2.4 Control Terminals

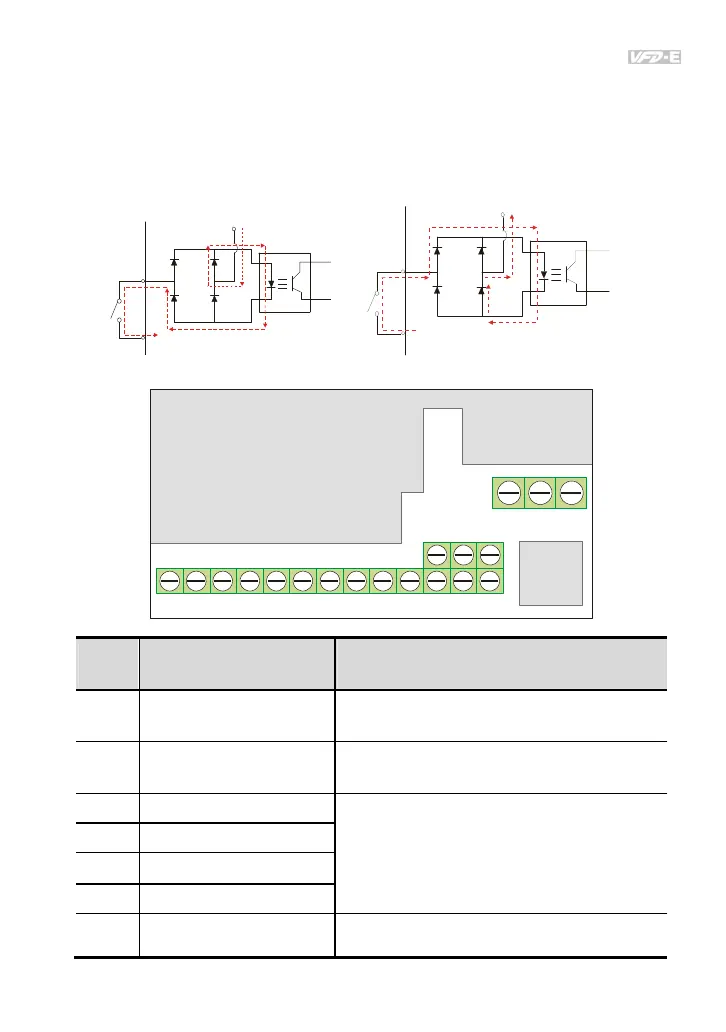

Circuit diagram for digital inputs (NPN current 16mA.)
+24
NPN Mode
multi-input
terminal
Internal CircuitDCM
+24V
Multi-Input
Terminal
DCM
Internal Circuit
PNP Mod
e
The position of the control terminals
RS-485
10VMI1 MI2 MI3 MI4 MI5 MI6 DCM 24V DCM ACM AVI ACI
AFM MCM MO1
RA
RB RC
Terminal symbols and functions
Terminal
Symbol
Terminal Function
Factory Settings (NPN mode)
ON: Connect to DCM
MI1 Forward-Stop command
ON: Run in MI1 direction
OFF: Stop acc. to Stop Method
MI2 Reverse-Stop command
ON: Run in MI2 direction
OFF: Stop acc. to Stop Method
MI3 Multi-function Input 3
Refer to Pr.04.05 to Pr.04.08 for programming the
Multi-function Inputs.
ON: the activation current is 6mA.
OFF: leakage current tolerance is 10
μ
A.
MI4 Multi-function Input 4
MI5 Multi-function Input 5
MI6 Multi-function Input 6
+24V DC Voltage Source +24VDC, 120mA used for PNP mode.
