B.8.5 IFD6500
Introduction
IFD6500 is a convenient RS-485-to-USB converter, which does not require external
power-supply and complex setting process. It supports baud rate from 75 to 115.2kbps and
auto switching direction of data transmission. In addition, it adopts RJ-45 in RS-485 connector
for users to wire conveniently. And its tiny dimension, handy use of plug-and-play and
hot-swap provide more conveniences for connecting all DELTA IABU products to your PC.
Applicable Models: All DELTA IABU products.

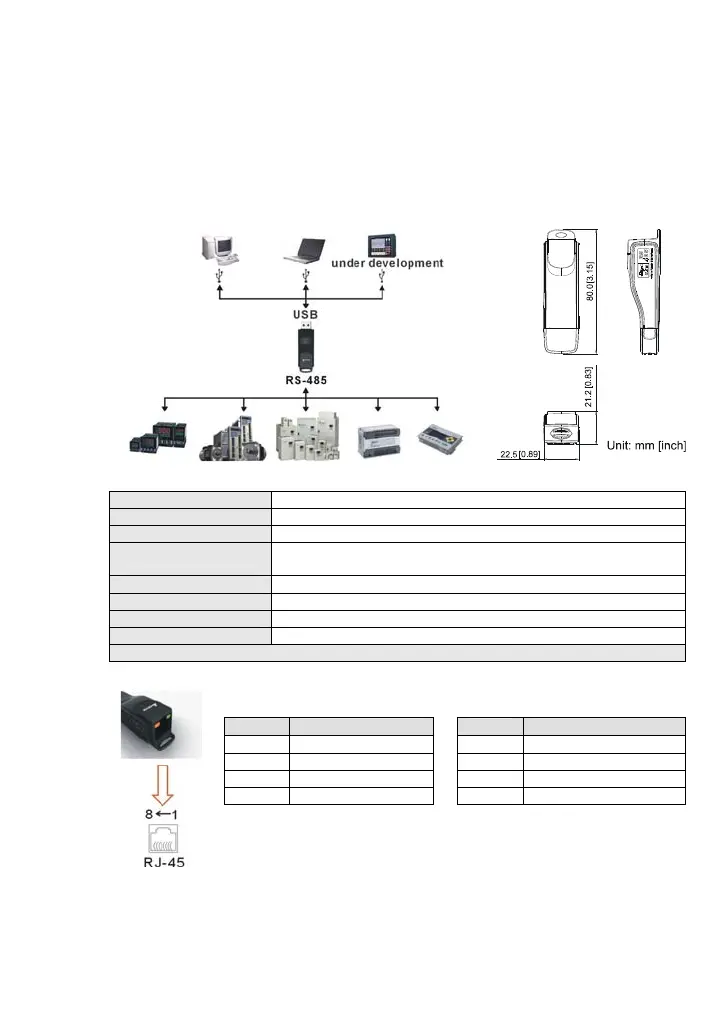

Application & Dimension
Specifications
Power supply No external power is needed
Power consumption 0.4W
Isolated voltage 2,500VDC
Baud rate
75, 150, 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400,
57,600, 115,200 bps
RS-485 connector RJ-45
USB connector A type (plug)
Compatibility Full compliance with USB V2.0 specification
Max. cable length RS-485 Communication Port: 100 m
Support RS-485 half-duplex transmission
RJ-45
PIN Description PIN Description
1 Reserved 5 SG-
2 Reserved 6 Reserved
3 Reserved 7 Reserved
4 SG+ 8 Reserved
Preparations before Driver Installation
Please extract the driver file by following steps. You could find driver file in the CD supplied
with IFD6500.
