B-17
Note:
When the setting exceeds 99.99 for those numbers with 2 decimals (i.e. unit is 0.01), it will only display 1 decimal
due to 4-digital display.

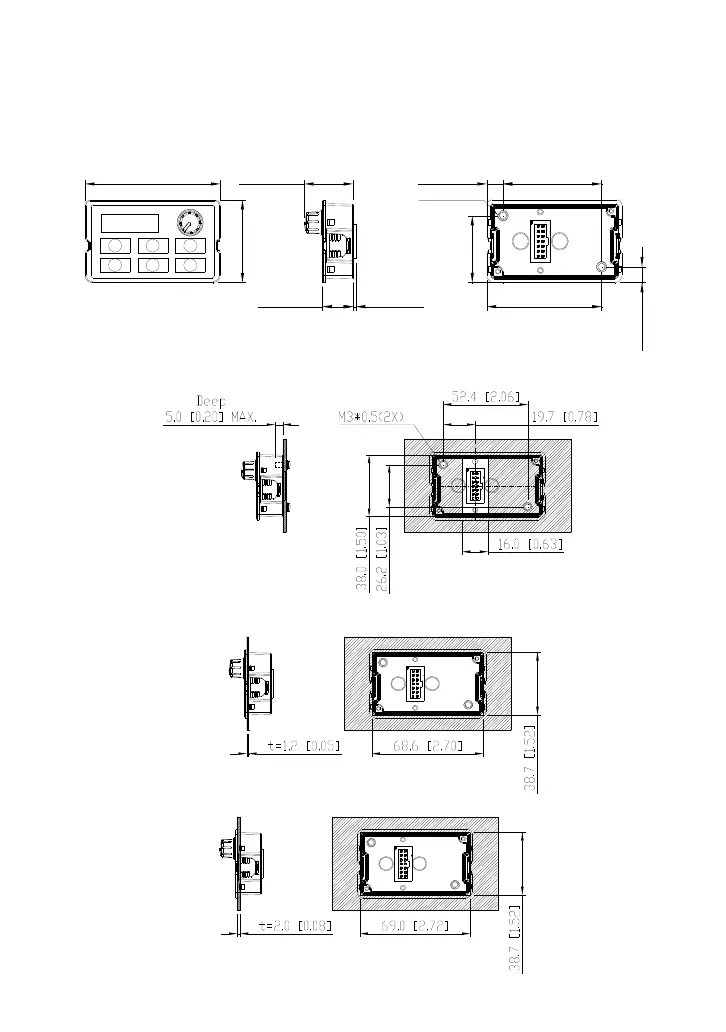

B.6.2 Keypad Dimensions
(Dimensions are in millimeter [inch])
71.9 [2.83]
42.4 [1.67]
1.5 [0.06]16.3 [0.64]
52.4 [2.06]8.6 [0.34]
61.0 [2.40]
34.3 [1.35]
.1 [0.32]
25.9 [1.02]
M3*0.5(2X)
B.6.3 Digital Keypad Installation
Method1. Install directly (Unit : mm [inch])
Method2. Install according to plank thickness (Unit: mm [inch])
A. Plank thickness=1.2mm[0.05 inches]
B. Plank thickness =2.0mm[0.08 inches]
