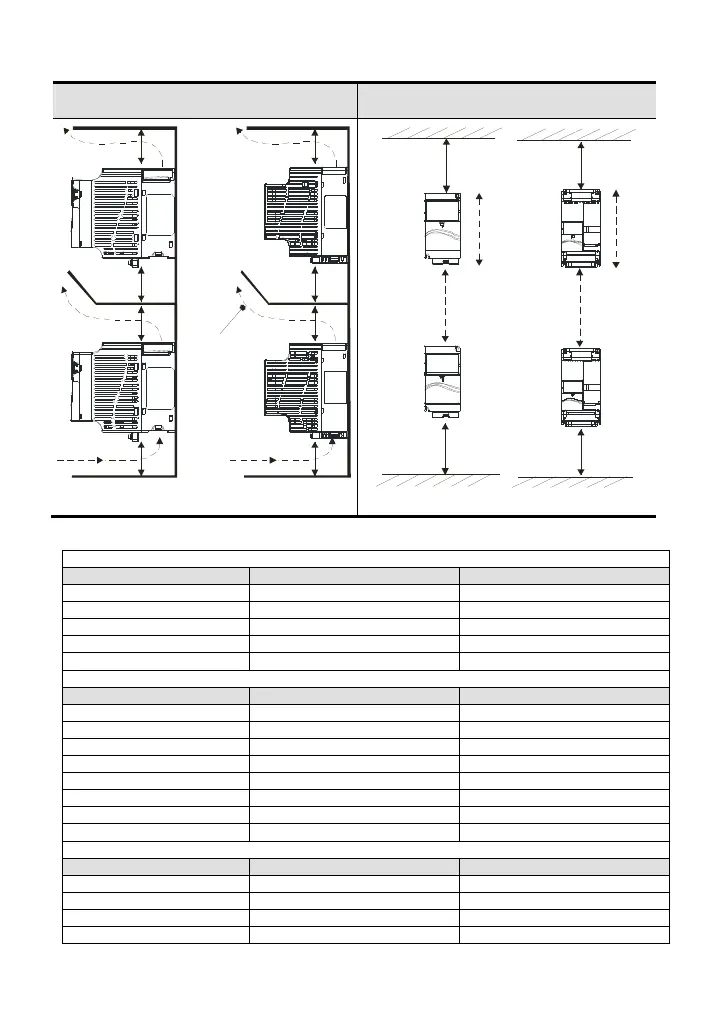

Installation with Metal Separation Installation without Metal Separation

120mm

150mm

Air flow

F ram e A F ram e B, C and D

120mm

150mm

Frame A

Frame B, C and D

1φ/110V

Model Total Power Dissipation (W) Flow rate (CFM)

VFD002E11A/C/T 22 Natural Convection

VFD004E11A/C/T 33 Natural Convection

VFD007E11A 54 14

VFD002E11P 22 -

VFD004E11P 33 -

1φ/230V

Model Total Power Dissipation (W) Flow rate (CFM)

VFD002E21A/C/T 22 Natural Convection

VFD004E21A/C/T 34 Natural Convection

VFD007E21A/C/T 57 Natural Convection

VFD015E21A/C 97 14

VFD022E21A/C 142 14

VFD002E21P 22 -

VFD004E21P 34 -

VFD007E21P 57 -

3φ/230V

Model Total Power Dissipation (W) Flow rate (CFM)

VFD002E23 A/C/T 19 Natural Convection

VFD004E23 A/C/T 29 Natural Convection

VFD007E23 A/C/T 49 Natural Convection

VFD015E23 A/C/T 87 14
