Delta VFD-E Series User Manual

E-3

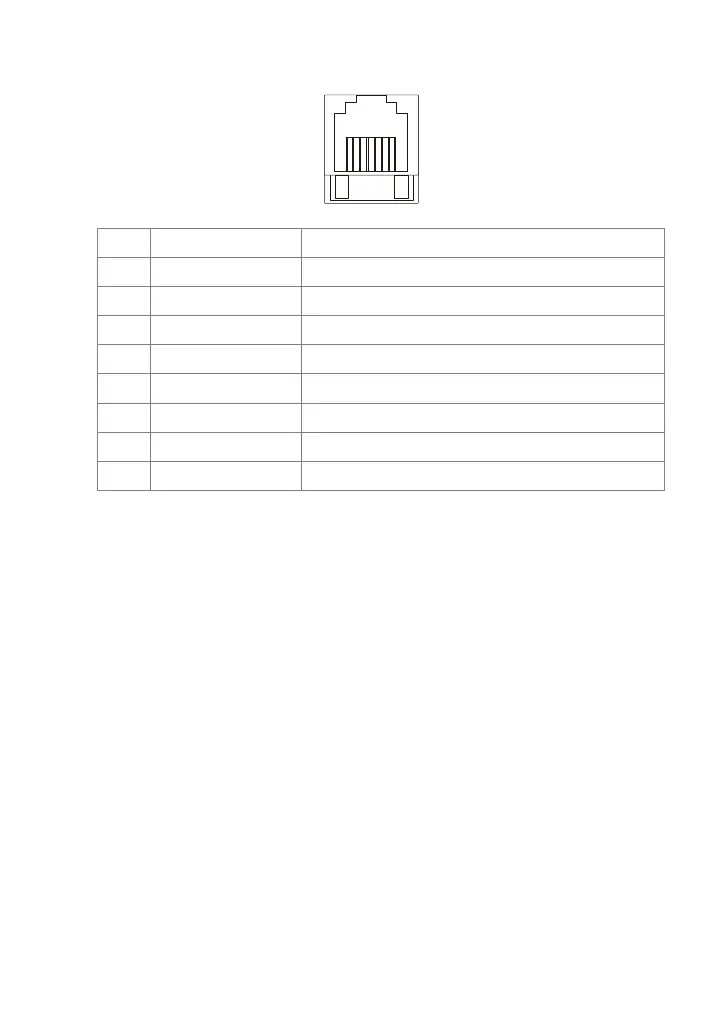

E.1.2 RJ-45 Pin Definition
8~1
plug
PIN Signal Description
1 CAN_H CAN_H bus line (dominant high)
2 CAN_L CAN_L bus line (dominant low)
3 CAN_GND Ground / 0V /V-
4 SG- 485 communication
5 SG+ 485 communication
6 GND Ground
7 CAN_GND Ground / 0V /V-
8 EV Power
