B-29
B.8 Fieldbus Modules

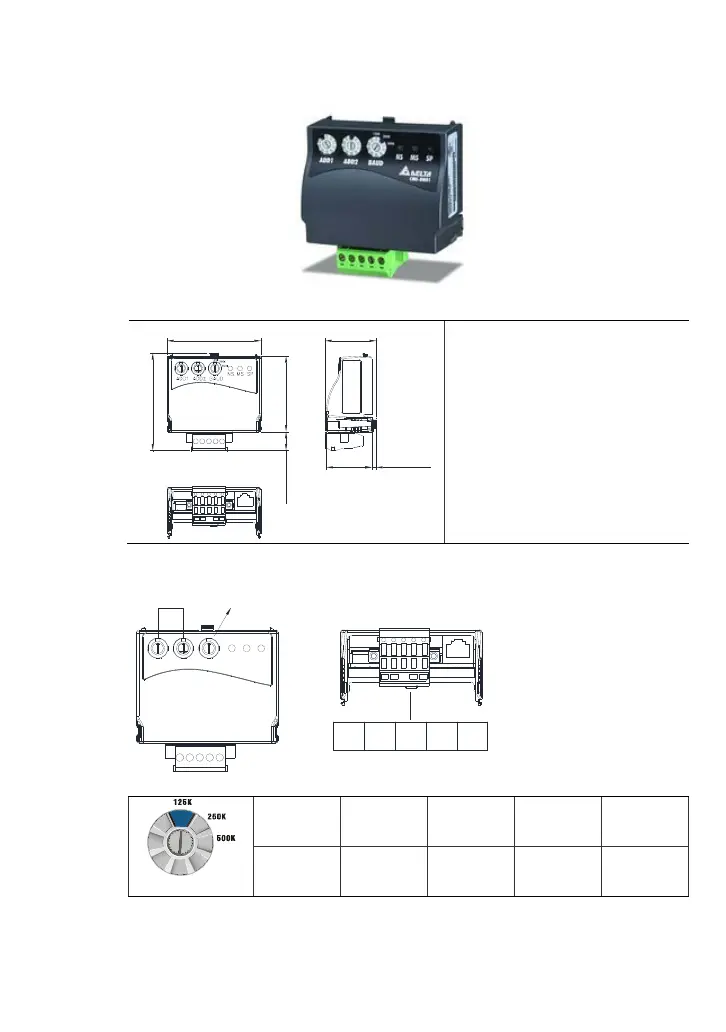

B.8.1 DeviceNet Communication Module (CME-DN01)
B.8.1.1 Panel Appearance and Dimensions
72.0 [2.83]
14.4 [0.56]
74.0 [2.92]
34.8 [1.37] 3.5 [0.14]
39.3 [1.55]
57.3 [2.26]
1. For RS-485 connection to VFD-E
2. Communication port for connecting
DeviceNet network
3. Address selector
4. Baud rate selector
5. Three LED status indicators for
monitor
Unit: mm[inch.]
B.8.1.2 Wiring and Settings
Refer to following diagram for details.
MS
NS
SP
BAUDADD1
ADD2
500K
250K
125K
MAC address
Date Rate
Empty
Pin
V+
CAN-H
CAN-L
V-
1: Reserved
2. EV
3. GND
4. SG-
5. SG+
6. Reserved
7. Reserved
8. Reserved
Setting baud rate
BAUD
0
Switch Value
0 1 2 Other
Baud Rate 125K 250K 500K Auto
Setting MAC addresses: use decimal system.
