Delta VFD-E Series - Remove Cooling Fan

1-9
Remove Cooling Fan

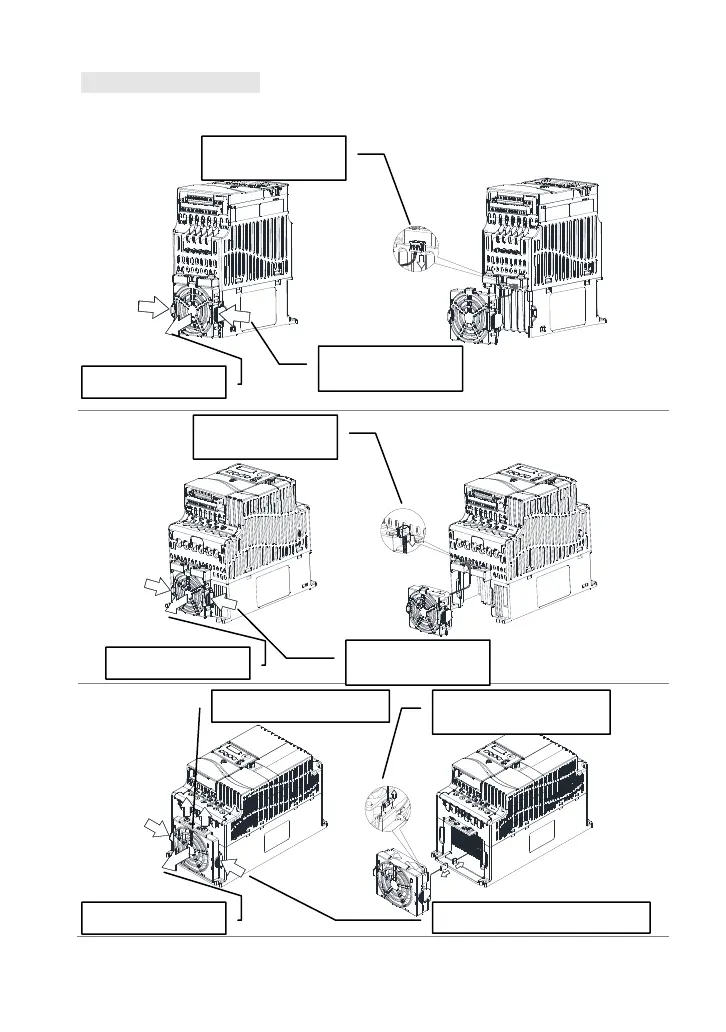

Press and hold in the latch on each side of the fan and pull the fan up to release.
Frame A
Frame B
Frame C
3. Detach the power
cord from the fan.
1. Press the left
and right latches.
2. Remove the fan.
3. Detach the power
cord from the fan.
2. Remove the fan.
1. Press the left and
right latches.
2. Press the left and right latches.
3. Remove the fan.
4. Detach the power cord
from the fan.
1. Loose the two screws
