B-20
B.7 Extension Card
For details, please refer to the separate instruction shipped with these optional cards or
download from our website http://www.delta.com.tw/industrialautomation/.

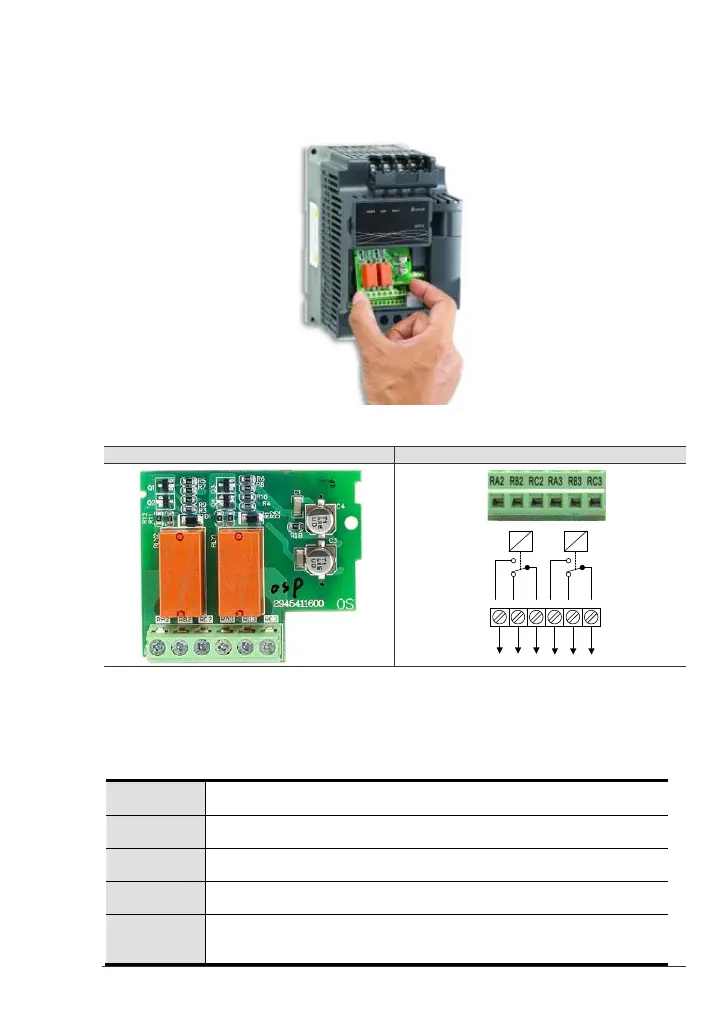

Installation method:
B.7.1 Relay Card
EME-R2CA Terminal
RB2 RC2 RA3 RB3 RC3RA2
Screw torque of terminal: 5kgf-cm (max.)
Wire gauge: 12~24 AWG
If the extension card is installed on the AC motor drive, AC motor drive will detect the
extension card automatically, and it can also use the parameter Group 11 for setting. In
case there is no extension card installation, the parameters only have Group 0 ~ Group 10
for setting. Please refer to manual CH.5 for detail parameter settings.
Environment (Please use this product indoor with no dust, corrosive gas and liquid .)
Operation
Temperature
-10
º
C to 50
º
C (Non-condensation, on-frozen)
Storage
Temperature
-20ºC to +60C
Rated
Humidity
Under 90%RH (Non-condensation)
Maximum
Altitude
Lower than 1000m
Vibration
10Hz
≦
≦
57Hz Fix Amplitude:0.075mm
57Hz
≦
f
≦
150Hz Fix Acceleration: 1G
(According to IEC 60068-2-6)
To Next Page
