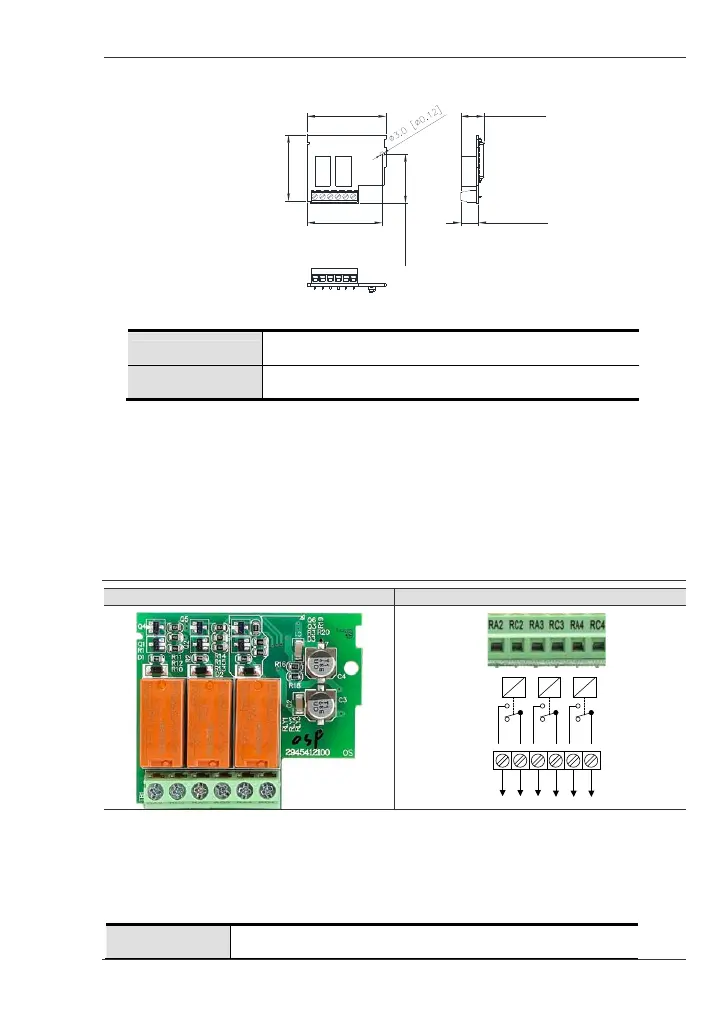

B-21
Dimensions: Unit: mm [inch]
15.4 [0.60]
11.6 [0.46]49.5 [1.95]
32.5 [1.28]
52.0 [2.05]
43.5 [1.71]
Input / Output
EME-R2CA（Each contact can withstand voltage / current）
Resistive Load
C-A (N.O.): 5A 250VAC/30VDC
C-B (N.C.): 3A 250VAC/30VDC
Inductive Load
C-A (N.O.): 1.5A 250VAC/30VDC
C-B (N.C.): 0.5A 250VAC/30VDC
Warning:
To connect the inductive load (relay, electromagnetic contactors, motor ... etc.）, please
install RC network or Varistor beside the coil.
Please install fuse (the spec can’t greater than contact limits) in the loops for safety
concern.
Please use isolated cable to prevent the interface as far as possible.
Please have soldering or terminal for cable.
Based on the safety considerations, please keep more than 15cm with other control, moto
and power cables and wiring independently; please keep the vertical wiring if it is
necessary for cable staggering.
All operations can NOT exceed the limitation of spec.
EME-R3AA Terminal
RC2 RA3 RC3 RA4 RC4RA2
Screw torque of terminal: 5kgf-cm (max.)
Wire gauge: 12~24 AWG
If the extension card is installed on the AC motor drive, AC motor drive will detect the
extension card automatically, and it can also use the parameter Group 11 for setting. In
case there is no extension card installation, the parameters only have Group 0 ~ Group 10
for setting. Please refer to manual CH.5 for detail parameter settings.
Environment (Please use this product indoor with no dust, corrosive gas and liquid .)
Operation
Temperature
-10
º
C to 50
º
C (Non-condensation, on-frozen)
To Next Page
