Delta VFD-E Series - Main Circuit Terminals

Chapter 2 Installation & Wiring
2-17

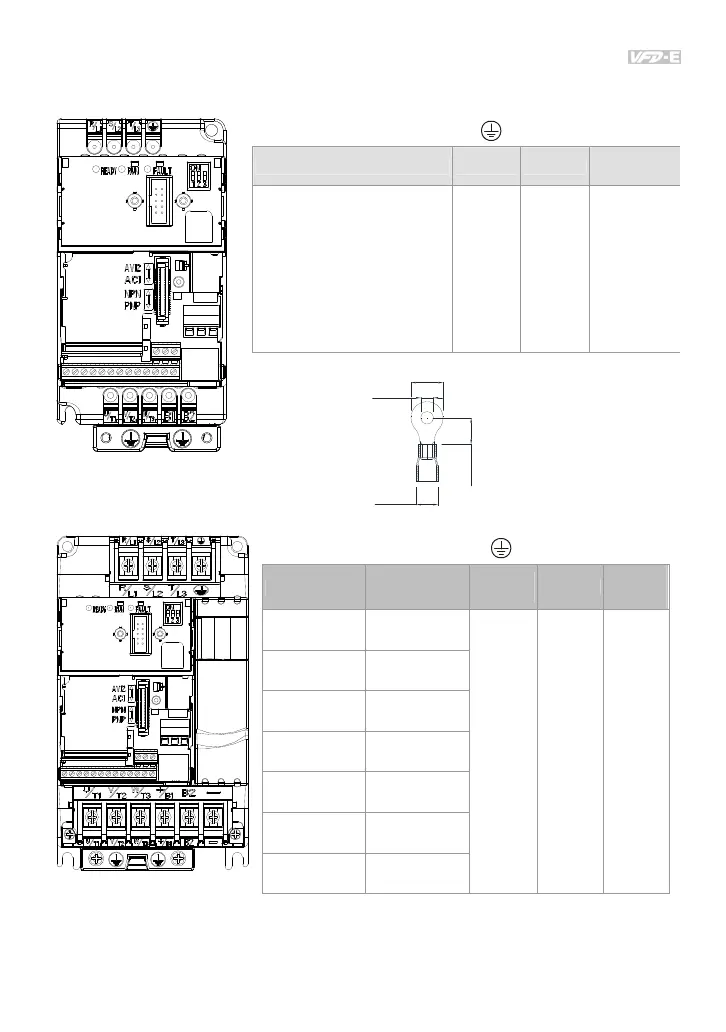

2.3.2 Main Circuit Terminals
Frame A
Main circuit terminals:
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
, +, -
Models Wire Torque
Wire
Type
VFD002E11A/11C/11T/11P;
VFD002E21A/21C/21T/21P;
VFD002E23A/23C/23T/23P;
VFD004E11A/11C/11T/11P;
VFD004E21A/21C/21T/21P;
VFD004E23A/23C/23T/23P;
VFD004E43A/43C/43T/43P;
VFD007E21A/21C/21T/21P;
VFD007E23A/23C/23T/23P;
VFD007E43A/43C/43T/43P;
VFD015E23A/23C/23T/23P;
VFD015E43A/43C/43T/43P;
14 AWG.
(2.1mm
2
)
8 kgf-cm
(6.9 in-lbf)
Stranded
copper
only
600V,
75℃
or above
Recommend round terminal spec(UL recognized)
6.8 Max.
3.2 Min.
FOR M3 SCREW
6.4 Max.
WITH OR W/O INSULATOR(HEATSHRINK TUBE) AFTER
CRIMPING
5.2 Min.
Frame B
Main circuit terminals:
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
, +/B1, B2, -
Mode s Wire (Min.)
Wire
(Max.)
Torque
Wire
Type
VFD007E11A/11
C
10 AWG (5.3mm
2
)
10 AWG
(5.3mm
2
)
18kgf-cm
(15.6in-lbf)
Stranded
copper
only
600V ,
75℃
or above
VFD015E21A/21
C
12 AWG (3.3mm
2
)
VFD022E21A/21
C
10 AWG (5.3mm
2
)
VFD022E23A/23
C
12 AWG (3.3mm
2
)
VFD022E43A/43
C
14 AWG.
(2.1mm
2
)
VFD037E23A/23
C
10 AWG (5.3mm
2
)
VFD037E43A/43
C
14 AWG.
(2.1mm
2
)
Recommend round terminal spec (UL recognized).
