Delta VFD-E Series User Manual

Chapter 2 Installation & Wiring
2-22
General

Keep control wiring as far away as possible from the power wiring and in separate
conduits to avoid interference. If necessary let them cross only at 90º angle.

The AC motor drive control wiring should be properly installed and not touch any live
power wiring or terminals.
DANGER!
Damaged insulation of wiring may cause personal injury or damage to circuits/equipment if it comes
in contact with high voltage.

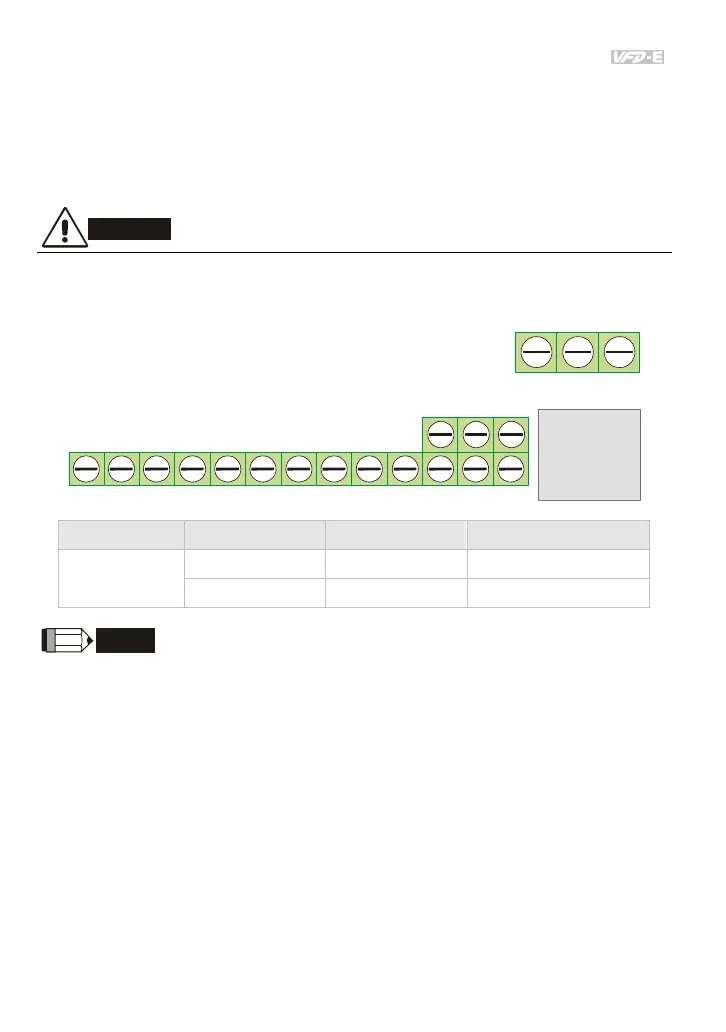

The specification for the control terminals
RS-485 port
10VMI1 MI
2
MI3 MI4 MI5 MI6 DCM 24V DCM
A
CM AVI ACI
AFM MCM MO1
RA
RB RC
The position of the control terminals
Terminals 2
Terminals 1
Frame Control Terminals Torque Wire
A, B, C, D
Terminals 1 5 kgf-cm (4.4 in-lbf) 12-24 AWG (3.3-0.2mm
2
)
Terminals 2 2 kgf-cm (1.7 in-lbf) 16-24 AWG (1.3-0.2mm
2
)
NOTE
Frame A：VFD002E11A/11C/11T/11P; VFD002E21A/21C/21T/21P;
VFD002E23A/23C/23T/23P;VFD004E11A/11C/11T/11P;
VFD004E21A/21C/21T/21P; VFD004E23A/23C/23T/23P;
VFD004E43A/43C/43T/43P; VFD007E21A/21C/21T/21P;
VFD007E23A/23C/23T/23P; VFD007E43A/43C/43T/43P
VFD015E23A/23C/23T/23P; VFD015E43A/43C/43T/43P;
Frame B：VFD007E11A/11C, VFD015E21A/21C, VFD022E21A/21C, VFD022E23A/23C,
VFD022E43A/43C, VFD037E23A/23C, VFD037E43A/43C,
Frame C：VFD055E23A/23C, VFD055E43A/43C, VFD075E23A/23C, VFD075E43A/43C,
VFD110E23A/23C, VFD110E43A/43C,
Frame D：VFD150E23A/23C, VFD150E43A/43C, VFD185E43A/43C, VFD220E43A/
