1-19

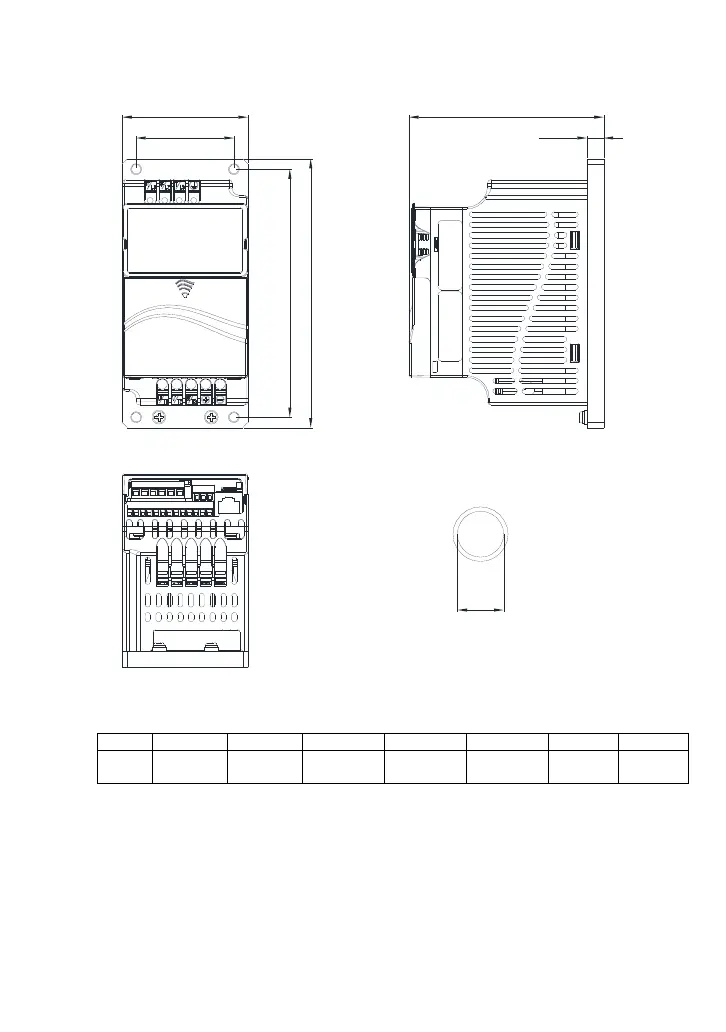

Frame A
VFD002E11P/21P/23P; VFD004E11P/21P/23P/43P; VFD007E21P/23P/43P; VFD015E23P/43P;
H
H1
W
W1
D
D1
S1
Unit: mm [inch]
Frame W W1 H H1 D D1 S1
A3
72.0
[2.83]
56.0
[2.20]
155.0
[6.10]
143.0
[5.63]
111.5
[4.39]
9.5
[0.37]
5.3
[0.21]
