Delta VFD-E Series User Manual

1-22

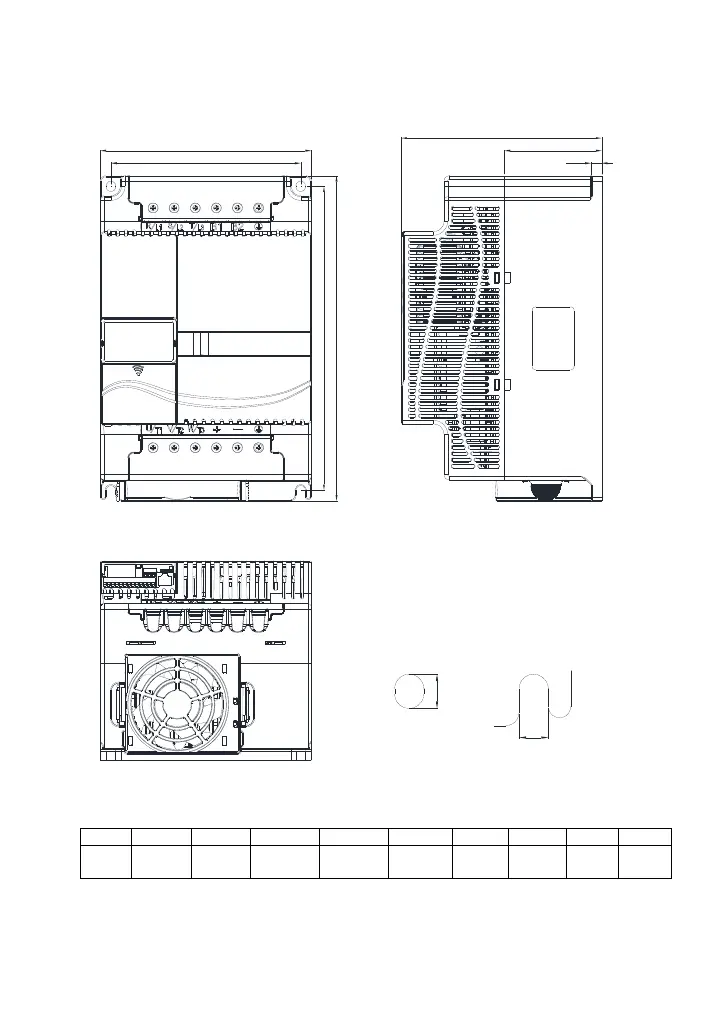

Frame D
VFD150E23A/23C; VFD150E43A43C; VFD185E43A/43C; VFD220E43A/43C;
W1
W
D2
D1
D
H1
H
S1
S2
Unit: mm [inch]
Frame W W1 H H1 D D1 D2 S1 S2
D
200.0
[7.87]
180.0
[7.09]
310.0
[12.20]
290.0
[11.42]
190.0
[7.48]
92.0
[3.62]
10.0
[0.39]
10.0
[0.39]
9.0
[0.35]
