Chapter 2 Installation & Wiring

2-6

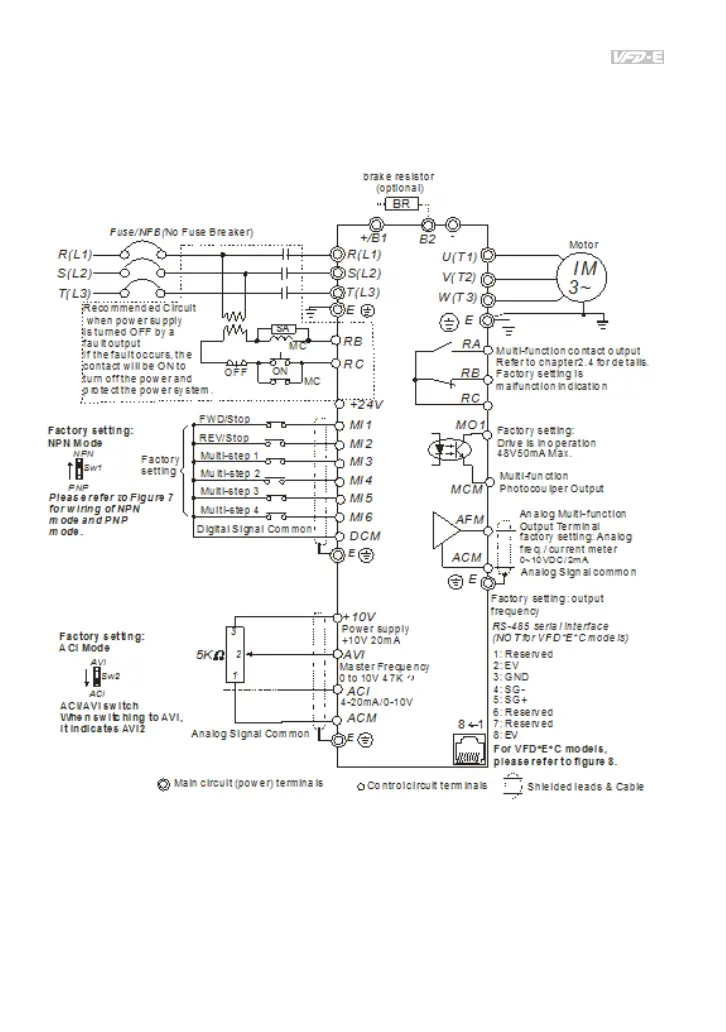

Figure 4 for models of VFD-E Series

VFD022E23A/43A, VFD037E23A/43A, VFD055E23A/43A, VFD075E23A/43A, VFD110E23A/43A,

VFD022E23C/43C, VFD037E23C/43C, VFD055E23C/43C, VFD075E23C/43C, VFD110E23C/43C,

VFD150E23A/23C, VFD150E43A/43C, VFD185E43A/43C, VFD220E43A/43C
