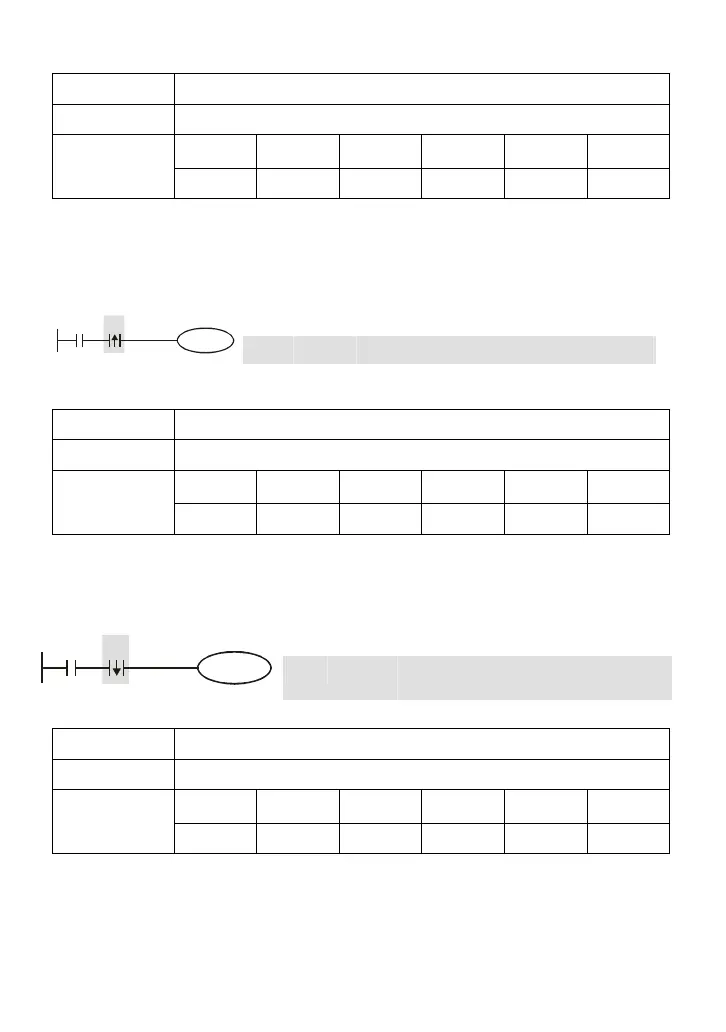

Delta VFD-E Series User Manual

D-52
Mnemonic Function
ANDP Rising-edge series connection
Operand
X0~X17 Y0~Y17 M0~M159 T0~15 C0~C7 D0~D29
    
--
Explanations:
ANDP command is used in the series connection of the contacts’ rising-edge detection.
Program Example:
Ladder diagram: Command code:
Operation:
X1X0
Y1
LD X0 Load A contact of X0
ANDP X1 X1 rising-edge detection in series connection
OUT Y1 Drive Y1 coil
Mnemonic Function
ANDF Falling-edge series connection
Operand
X0~X17 Y0~Y17 M0~M159 T0~15 C0~C7 D0~D29
    
--
Explanations:
ANDF command is used in the series connection of the contacts’ falling-edge detection.
Program Example:
Ladder diagram: Command code: Operation:
X1X0
Y1
LD X0 Load A contact of X0
ANDF X1 X1 falling-edge detection in series
connection
OUT Y1 Drive Y1 coil
Mnemonic Function
ORP Rising-edge parallel connection
Operand
X0~X17 Y0~Y17 M0~M159 T0~15 C0~C7 D0~D29
    
--
Explanations:
The ORP commands are used in the parallel connection of the contact’s rising-edge detection.
