Delta VFD-E Series - Page 41

Chapter 2 Installation & Wiring
2-12

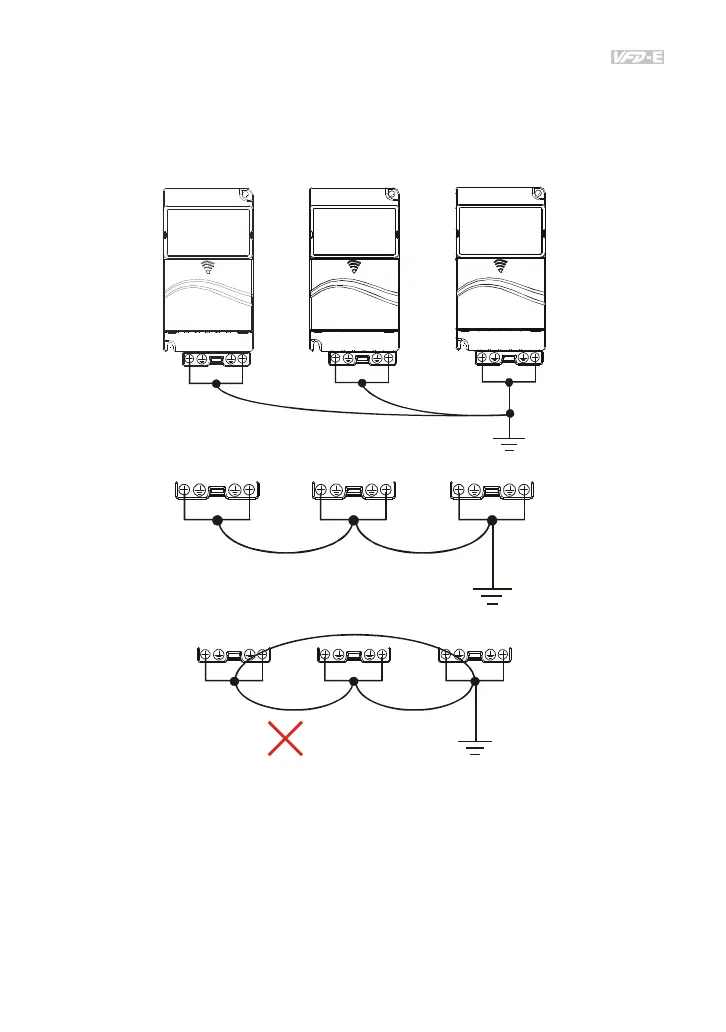

11. Multiple VFD-E units can be installed in one location. All the units should be grounded directly
to a common ground terminal, as shown in the figure below. Ensure there are no ground
loops.
Excellent
Good
Not allowed
