Chapter 11: Matrix Mixers and PQ Mixers
The D-Show Outputs section offers 8 mono Matrix mixers and 8 stereo Personal Q (PQ) mixers for setting up alternate mixes, fill
and delay tower feeds, and cue, monitor or press mixes.
Inputs
Matrix mixers and PQ mixers can be configured independently to have different input sources. Matrix and PQ input sources can
be controlled from the Output section and on-screen.
Outputs
Matrix mixers have mono outputs and PQ Mixers have stereo outputs. Matrix and PQ outputs can be controlled from the Output
Faders or on-screen.
Remote Control of PQ Mixers (Optional)
With optional PQ Controllers, PQ sources and outputs can be controlled remotely. If no PQ Controllers are used, the PQ mixers
are still available for use as stereo matrix mixers controllable from the main console.
Matrix Mixers
Each of the 8 available Matrix mixers can receive up to 12 channels of input. Input sources can be any combination of Auxes,
Groups or Mains busses, or any of the eight available Matrix User Sends. Each Matrix mixer has a mono output.

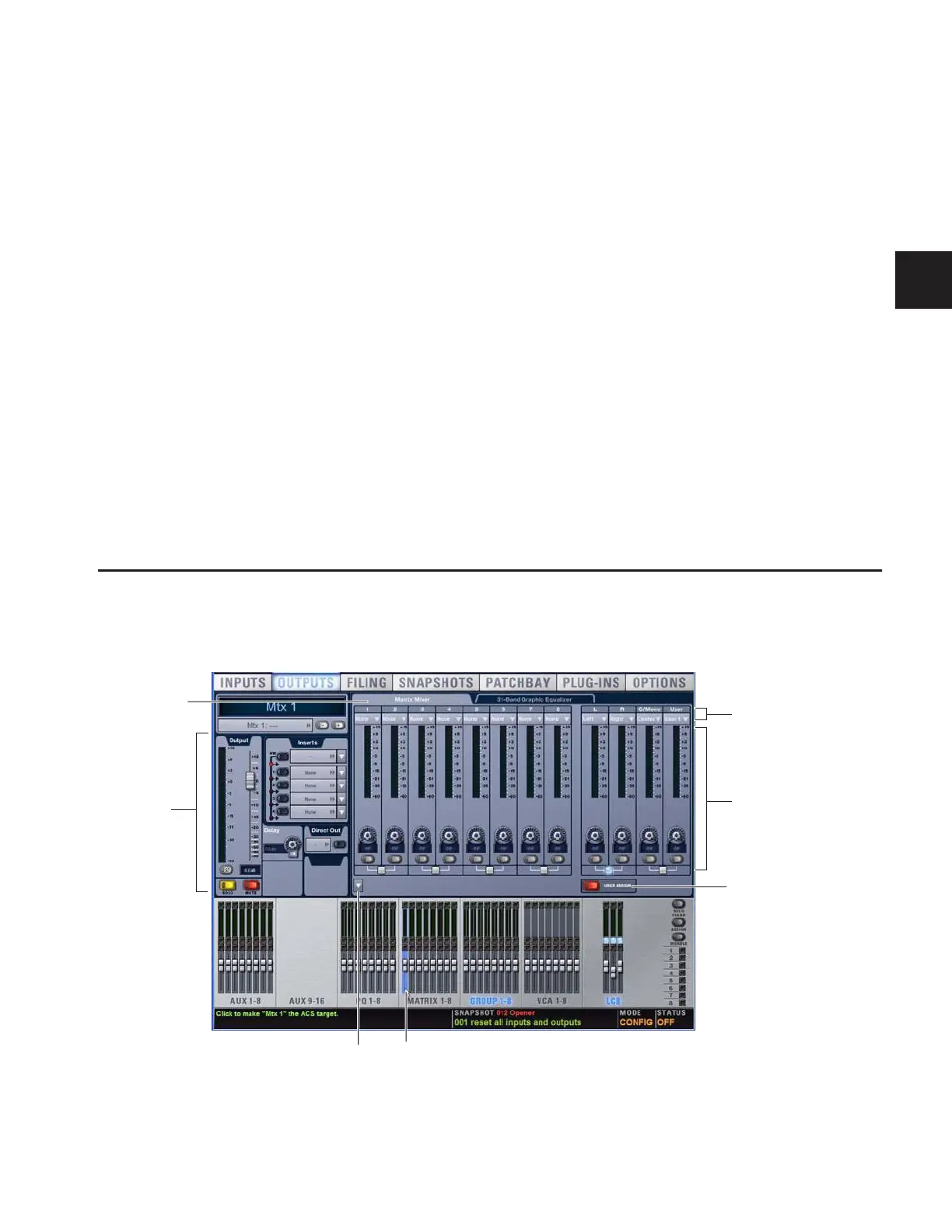

Matrix Mixer in Outputs page
Currently selected Matrix mixer
Matrix output
Matrix Source controls
level and
controls
Matrix Mixer tab
Reset, Clear and Replace selector
User Assign
Matrix Input Source selectors
To Next Page
