D-Show Profile Guide30
Graphic EQ Banks bands of graphic EQ to the faders. Graphic
EQs can be used on D-Show outputs only. For more informa-
tion, see Chapter 17, “EQ.”
Global Modifier Switches
To the left of the Bank A–D switches are the global modifier
switches. See “Global Modifier Switches” on page 36.
Multi-Select (Shift) Lets you select multiple input channels,
and lets you select multiple items in lists.
Default (Alt) Lets you reset a parameter, section, or channel to
default values. This switch also enables certain modes such as
Show VCA Members mode.
Fine (Ctrl) Lets you select non-adjacent items in lists, or adjust
rotary encoders with greater resolution for finer control.
User This switch is currently not implemented.
Assignable Channel Section
The Assignable Channel Section provides dedicated routing,
EQ, Dynamics, and insert controls for the currently selected
channel. ACS sections include the Input, Bus Assign, Direct
Out, Aux Sends and Inserts sections, the Selected Channel
Meters and display, and the Dynamics and EQ sections.
The ACS sections feature a light colored background color,
and each section features a blue LED which, when lit, indi-
cates that section applies to the selected channel.
Input
This section provides a channel Clip LED, and controls for
channel phantom power, input pad, polarity (phase), Gain
and Safe status.
Direct Output
The Direct Output section provides level and in/out control
for the channel direct output.
Bus Assigns
The Bus Assigns switches are the primary routing controls for
the currently selected channel, letting you bus it directly to
the Mains (L–R) bus or to any other mono or stereo group.

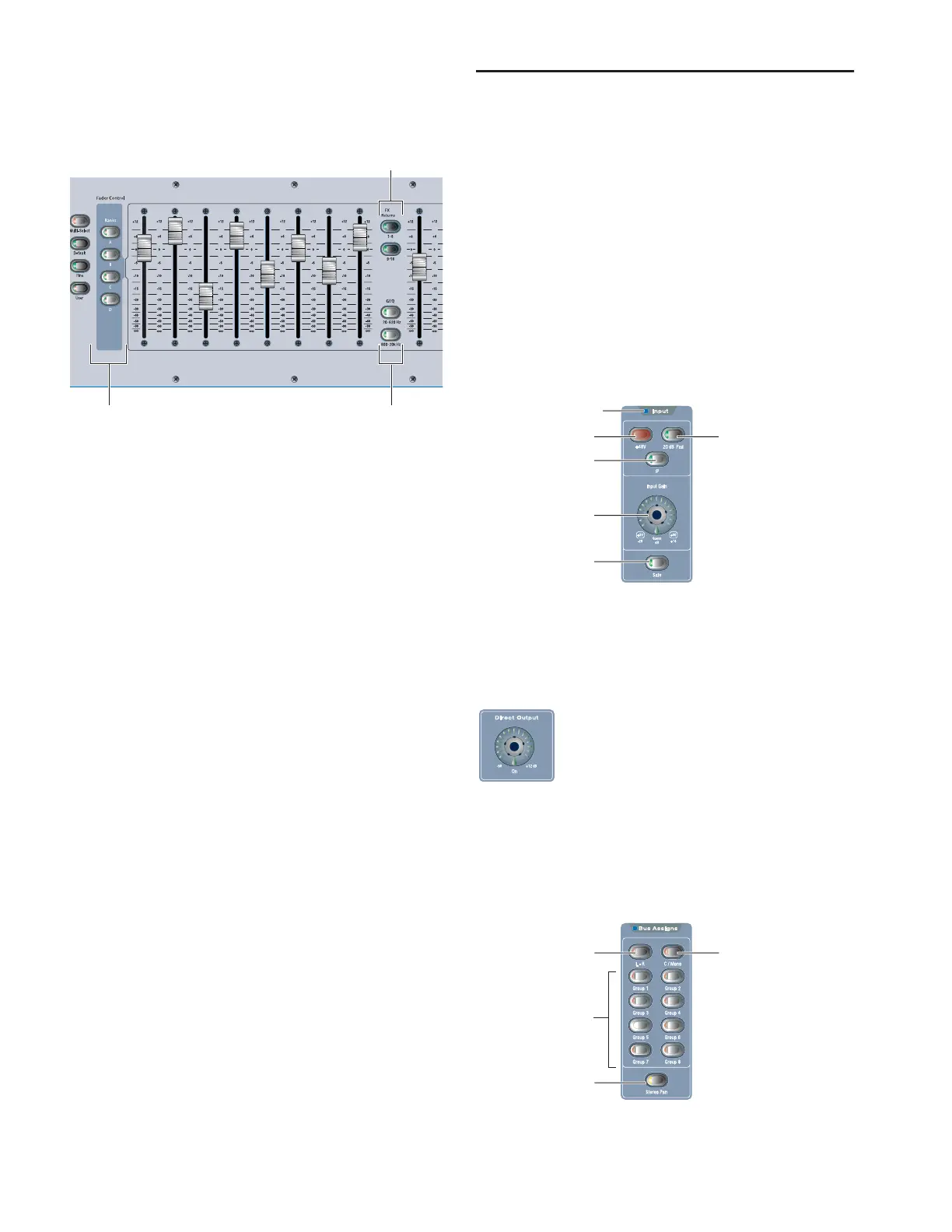

Input fader banking and assignment switches
Bank A–D
FX Returns
GEQ
20–630 Hz/800–20kHz
1–8/9–16
Input controls
Direct Output
Bus assign switches
+48 V 20 dB Pad
Input Polarity
Input Gain
Safe
Clip LED
L–R C/Mono
Group 1–8
Stereo Pan
