Chapter 3: D-Show Profile Control Overview 31
Aux Sends
The Aux Sends section provides in/out and level control to
route the currently selected channel to any available mono or
stereo-linked Aux bus. The Aux Sends section is banked using
the Aux 1–8 or Aux 9–16 switches.
The Variable Groups switch accesses Variable Groups mode.
When D-Show is in Variable Groups mode, the controls for
Aux 1–2 through Aux 7–8 route to Variable Groups 1–2
through 7–8 respectively. The Variable Groups switch also au-
tomatically toggles the input encoders to Variable Groups 1–8
(instead of Auxes 1–8).
Insert Processing
The Insert Processing section provides controls to bypass and
select plug-ins on the currently selected channel.
Selected Channel Meter, Display and LEDs
The Selected Channel display section include two 10-segment
Selected Channel meters, a 6-character LCD display and LEDS
for Status and Solo state.
The 6-character Selected Channel display shows the name of
the currently selected channel. The Selected Channel display
temporarily reverts to a parameter display mode any time an
encoder is adjusted on the selected channel.
The Stereo LED lights solid when a stereo input or output is
targeted. The Solo LED flashes any time a channel is in PFL,
AFL or Solo in Place mode.
The dual, 10-segment, bi-color LED meters indicate input
level and clip status for the currently targeted or Soloed chan-
nel.
Dynamics
The Dynamics section provides dedicated controls and meter-
ing for built-in and plug-in dynamics processors, including a
comprehensive set of Compressor/Limiter and Expander/Gate
controls.
EQ
The EQ section provides dedicated controls for all built-in and
compatible plug-in EQ parameters including band in/out, fre-
quency, Q, and mode.

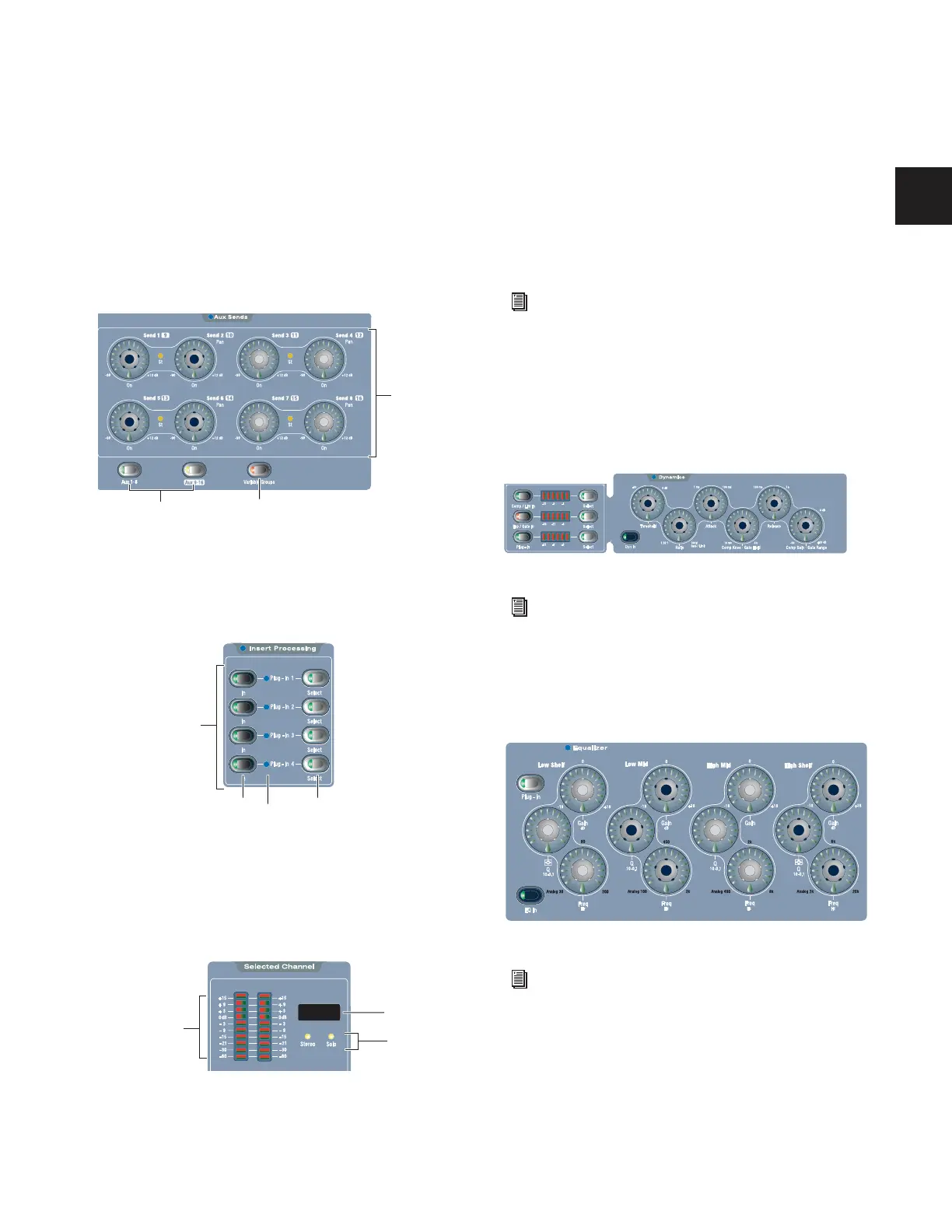

Aux send controls
Insert Processing controls
Selected Channel meters, displays and LEDs
Send 1–16
Variable Groups
Aux 1–8/Aux 9–16
encoders and
LEDs
Plug-Ins 1–4
In/Out
Select
LED
Meters
LCD Display
LEDs
For Selected Channel metering scale, see “Selected Channel
Level Meters” on page 108.
Dynamics section and controls
See Chapter 16, “Dynamics.”
EQ section and controls
See Chapter 17, “EQ.”
