Output Masters
The Output Masters section includes eight bankable output channel strips, each with a fader, encoder and channel switches. The
Mains fader provides master level control over the Mains (house) output.
Mains Fader
The Mains fader provides a single level control for the current
Mains output.
Output Faders
The eight Output Faders control level for Aux 1–8, Aux 9–16,
Personal Q, Matrix and Group busses, and VCAs.
Output Fader Bank Switches
The Output faders and encoders are banked to the desired bus
using the Output Faders switches.
Aux 1–8 Assigns the Output Faders to control Aux 1–8 levels.
Aux 9–16 Assigns the Output Faders to control Aux 9–16 lev-
els.
Personal Q’s Assigns the Output Faders to control PQ mixer
output levels.
Matrixes Assigns the Output Faders to control Matrix mixer
output levels.
Groups Assigns the Output Faders to control Group levels.
When D-Show is in Variable Groups mode, this switch assigns
the Output Faders to control Variable Groups.
VCAs Assigns the Output Faders to control VCAs.
Mute, AFL and Select Switches
Above the faders are the Mute, AFL and Select switches, which
mute, solo, and select Auxes or Groups assigned to the Output
section.
Output Encoders and Display
The eight Output Encoders adjust additional Output bus con-
trols such as Group pan, Matrix source and PQ source level, as
well as plug-in parameters (when in Inserts mode).
The Output Masters LCD display is a two-row display that is
capable of showing 6 characters in each row, per output bus.
The display shows the name, parameter or value currently be-
ing controlled in the Output Masters section.
The Prev Page and Next Page switches light to indicate addi-
tional functions depending on the selected output or plug-in
parameter. When lit, pressing either switch scrolls the Output
Encoders to the previous or next output or plug-in parame-
ters. The Inserts Mode switch puts the encoders in Inserts
mode, in which the Output encoders select and adjust
plug-ins.

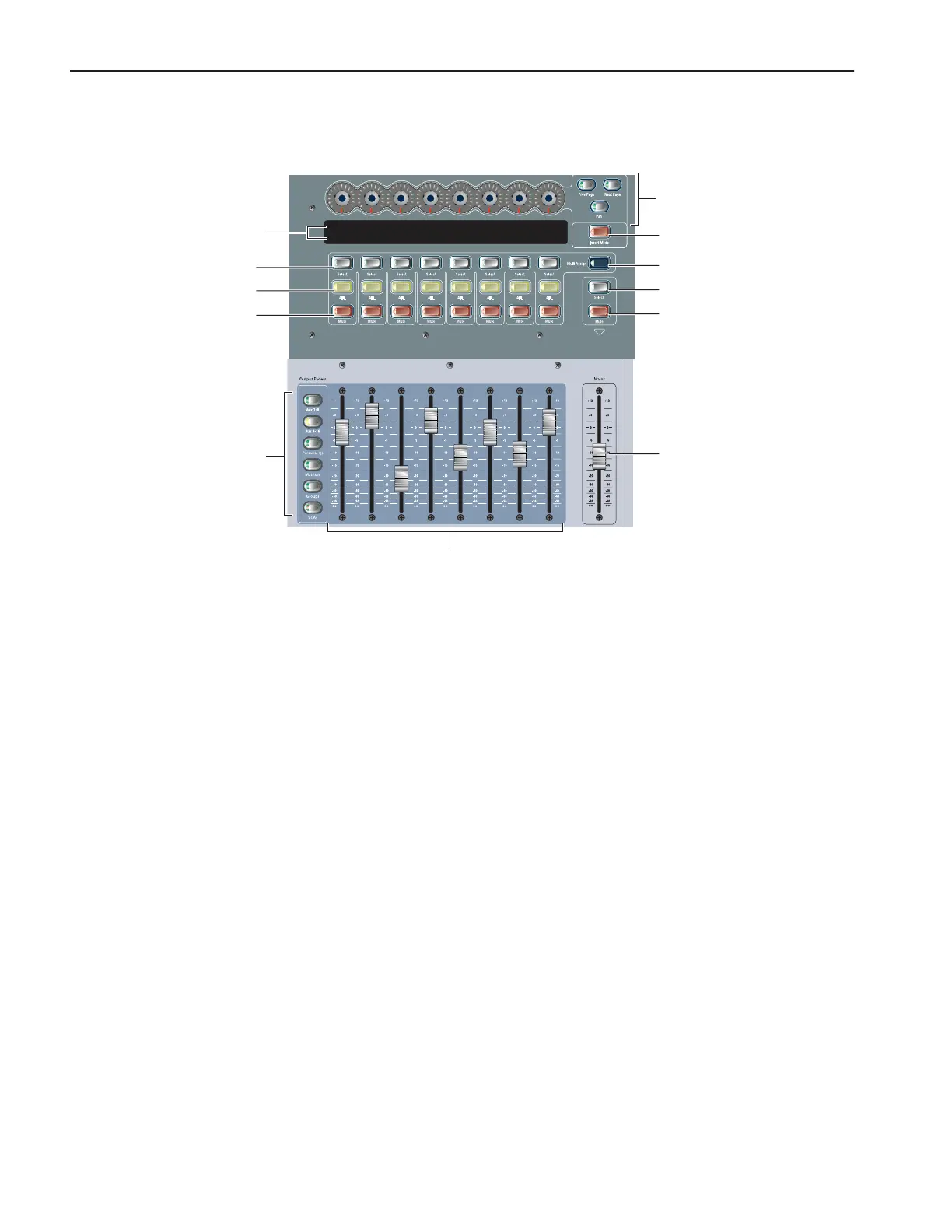

Figure 9. Input controls (Input Channels 1–8 shown)
Insert mode
Output Encoders
LCD Display
Select
AFL
Mute
Faders
Output Fader Mains fader
and switches
Select Mains
Mute Mains
Multi-Assign/Show VCA Members
bank switches
To Next Page
