D-Show Profile Guide74
Adjusting Output Controls
Different types of outputs can be controlled from the Output
faders, encoders and switches.
Output Levels
To control output levels from the Output faders:
1 Press one of the following switches in the Output Fader as-
signment section:
• Aux 1–8
• Aux 9–16
• Personal Qs
• Matrixes
• Groups
• VCA
2 Move a fader to change the level of its assigned output.
To create a level offset between linked Aux bus or Variable Group
bus output faders:
1 Press one of the following switches in the Output Fader as-
signment section:
• Aux 1–8
• Aux 9–16
• Groups (when in Variable Groups mode)
2 Do one of the following:
• Touch one linked bus output fader while moving the
other.
• Hold the Start (Win) key on the keyboard and move one
linked Aux bus fader on-screen.
The offset between the faders is maintained until the offset
causes a fader to reach its maximum or minimum value.
Output Polarity (Phase) Invert
The polarity of any output bus signal can be inverted. With
stereo outputs (Personal Q outputs and stereo Group busses)
only the left channel is inverted.
To invert the polarity of an output bus:
1 Target the bus by pressing its Select switch.
2 Press the polarity inversion (Ø) switch in the ACS Input sec-
tion. The switch lights when the polarity is inverted.
Output Solo
To control the solo status of an output bus:
1 Press one of the following switches in the Output section:
• Aux 1–8
• Aux 9–16
• Personal Qs
• Matrixes
• Groups (assigns Variable Groups when in Variable
Groups mode)
2 In the Output section, press an AFL switch to toggle the solo
status of the corresponding output bus.
For more information on Solo bus operation, see Chapter 14,
“Solo and Monitor Busses.”
Output Mute
To control the mute status of an output bus:
1 Press one of the following switches in the Output section:
• Aux 1–8
• Aux 9–16
• Personal Qs
• Matrixes
• Groups (assigns Variable Groups when in Variable
Groups mode)
2 Press a Mute switch to toggle the mute status of the corre-
sponding output bus.
For more information on Mute operation, see Chapter 15,
“Muting and Mute Groups.”
Output Delay
A variable delay (0–250 ms) can be applied to any of the Main
busses (L, R and C/M), Aux bus outputs and Matrix bus out-
puts. Variable Group outputs do not have this variable delay
feature.
To apply delay to an Aux bus:
1 Target the Aux bus by pressing its Select switch.
2 Press the ACS Delay rotary encoder to apply the delay to the
bus.
3 Adjust the delay value by turning the Delay rotary encoder.

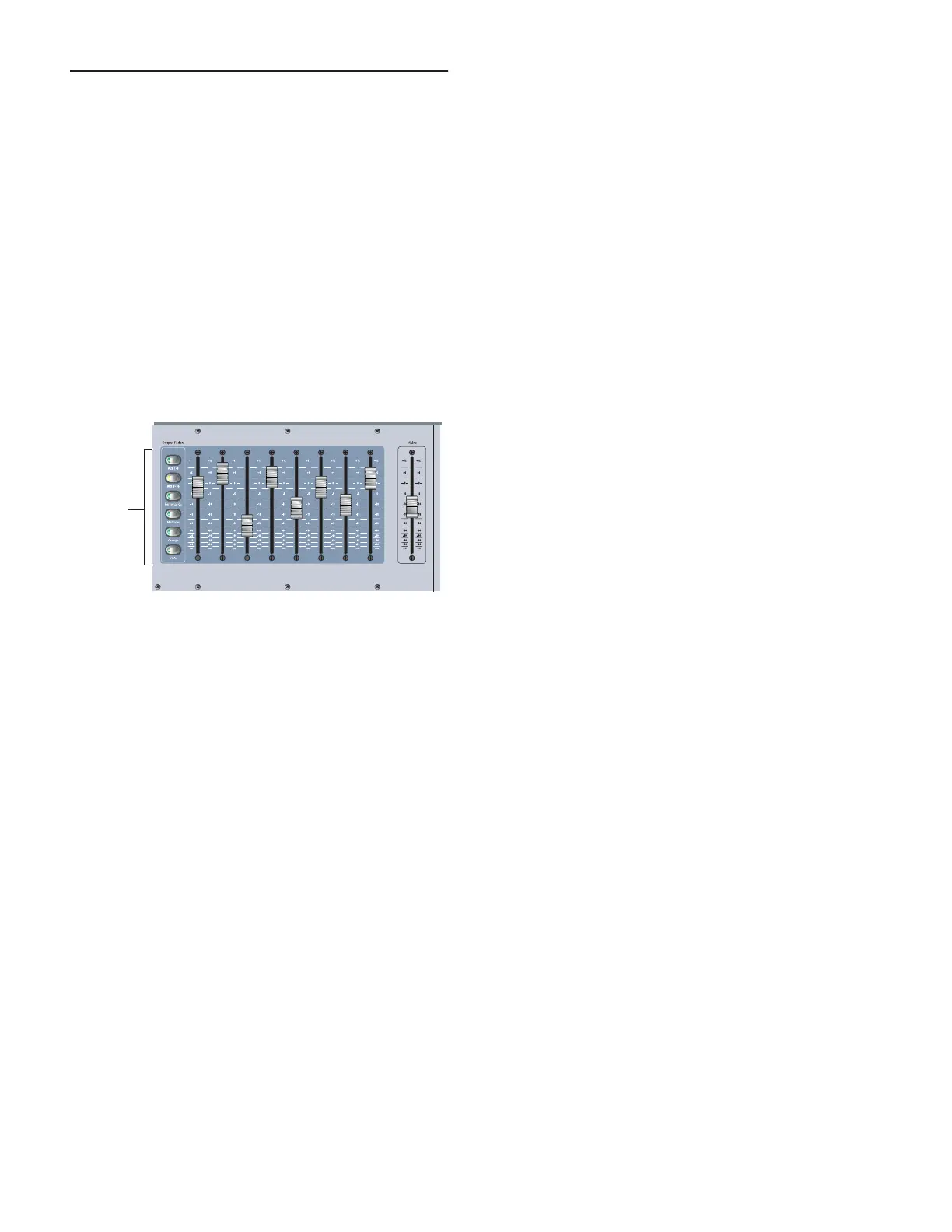

Output Fader controls
Output
Fader
assignment
switches
To Next Page
